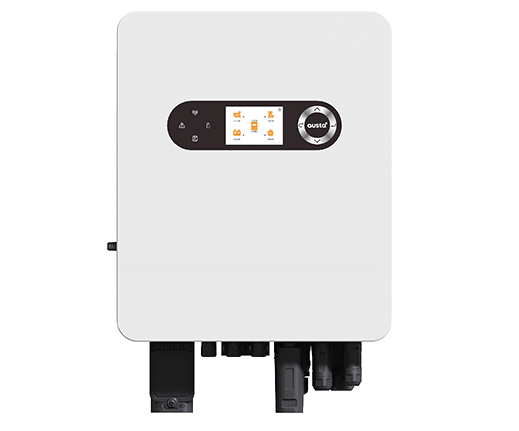

Low Voltage | Single Phase
Hybrid Inverter
110% overload output
(1.3times ≤ 60s)
UPS switch
over time<10ms
Up to 2 times input
Support dry contact
starting generator
The maximum current of
a single string module is 18A
Maximum 16 single-phase
units paralle
Waterproof grade IP66
Support dry contact
starting generator
Operation under only-PV
Input Avaliable
Dual back up output
<500ms fast Response
Al early detection for Arc no false alarm
300 metres long distance
30A high current
| Model | AU3KES | AU3.6KESL | AU4KESL | AU4.6KESL | AU5KESL | AU6KESL | AU8KESL |
| PV INPUT | |||||||
| Max.DC Input Power [W] | 6000 | 7200 | 8000 | 9200 | 10000 | 12000 | 16000 |
| Max. DC Input Voltage [V] | 500 | ||||||
| MPPT Operating Voltage Range [V] | 150-450 | ||||||
| Starting Voltage | 125 | ||||||
| Max. Input Current | 18 | 18/18 | 30/18 | ||||
| Max. Short Circuit Current | 22.5 | 22.5/22.5 | 24/22.5 | ||||
| Number Of MPP Trackers | 1 | 2 | |||||
| Strings Per MPP Tracker | 1 | ||||||
| AC OUTPUT_ GRID | |||||||
| Rated Output Power [W] | 3000 | 3600 | 4000 | 4600 | 5000 | 6000 | 8000 |
| Max. Output Apparent Power [V] | 3300 | 3960 | 4400 | 5000 | 5500 | 6600 | 8800 |
| Rated Output Voltage [V] | 220/230 | ||||||
| Rated Output Frequency [Hz] | 50/60 | ||||||
| Max. Output Current [A] | 15 | 18 | 20 | 22 | 25 | 27 | 40 |
| THDi | <3% | ||||||
| Output Power Factor | 1 (-0.8 leading~+0.8 lagging) | ||||||
| AC OUTPUT _ TWO BACKUP | |||||||
| Full Max. Output Power[W] | 3000 | 3600 | 4000 | 4600 | 5000 | 6000 | 8000 |
| Max. Output Apparent Powe [W,sec] | 6000,15 | 7200,15 | 8000,15 | 9200,15 | 10000,15 | 10000,15 | 16000,15 |
| Rated Output Voltage [V] | 220/230 | ||||||
| Rated Output Frequency [Hz] | 50/60（±0.2%） | ||||||
| Backup1 Max. Output Power [W] | 3000 | 3600 | 4000 | 4600 | 5000 | 6000 | 8000 |
| Backup2 Max. Output Power [W] | 3000 | 3600 | 4000 | 4600 | 5000 | 6000 | 8000 |
| Output Power Factor(off grid) | -0.8 leading~+0.8 lagging | ||||||
| Output Current Harmonic Distortion | THD<3%(Nonlinear load); THD<1.5%(Linear load) | ||||||
| Max. Output Current [A] | 14 | 16 | 18 | 21 | 23 | 27 | 40 |
| BATTERY PARAMETERS | |||||||
| Battery Type | Lithium or lead acid battery | ||||||
| Voltage Range [V] | 44-57 | ||||||
| Rated Battery Voltage [V] | 48 | ||||||
| Max. Charge/Discharge Current [A] | 75 | 90 | 100 | 110 | 110 | 120 | 190 |
| BMS Communication | CAN/RS485 | ||||||
| Efficiency | |||||||
| Max efficiency(PV) | 97.6% | 98% | |||||
| Max efficiency(cell) | 94.5% | ||||||
| Europe efficiency | 97% | 97.5% | |||||
| Protection | |||||||
| PV Input Reverse Polarity Protection | Yes | ||||||
| PV Insulation Resistance Detection | Yes | ||||||
| Residual Current Detection | Yes | ||||||
| Output Over Current Protection | Yes | ||||||
| Output Short Circuit Protection | Yes | ||||||
| Output Over Voltage Protection | Yes | ||||||
| OTHER PARAMETERS | |||||||
| Operating Temperature Range (°C) | -25~+60 (frequency-decreasing above 45) | ||||||
| Storage Temperature Range (°C) | -30~65 | ||||||
| Humidity Range | 0~95% | ||||||
| Operating Altitude | ≤4000 (frequency-decreasing above 2000) | ||||||
| Ingress Protection | IP66 | ||||||
| Topology | HF isolation (Battery side) | ||||||
| Noise [dB] | <55 | ||||||
| Communication | RS485/CAN/WiFi/Ethemnet/4G | ||||||
| Cooling Method | Air cooling | ||||||
| Size (W×H×D) [mm] | 427*554*198 | ||||||
| Weight [Kg] | 20 | 21.5 | |||||
| STANDARD | |||||||
| Safety Standard/EMC Standard | NB/T32004-2018, IEC62109, IEC61000, IS16169 & IS16221(BIS) | ||||||
| Grid-Connected Standard | IEC61727, EN50549-1, VDE-4105, NRS-097-2-1, OVE-Richtlinie R25, UNE217001/2, Ordinace No.140 | ||||||
| Other Standard | IEC61683, IEC62116, EN50530, IEC60068 | ||||||
