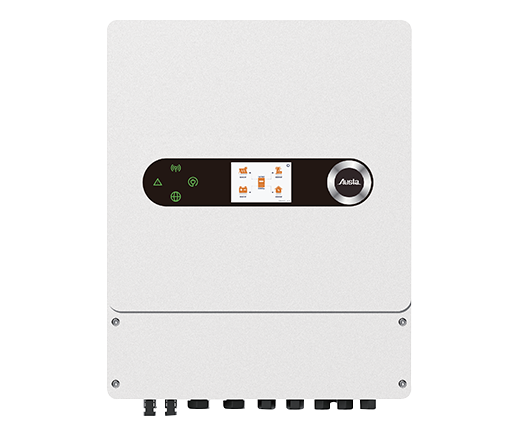

Low Voltage | Three Phase
Hybrid Inverter
110% overload output
(1.3times ≤ 60s)
UPS switch
over time<10ms
Normal operation of
olny-connection PV panels
Support dry contact
starting generator
a single string module is 10A
The maximum current of
Supports a maximum of
16 single-phase units
Waterproof grade IP66
Support dry contact
starting generator
Normal operation of
olny-connection PV panels
Dual back up output
Support 110% three-phase
unbalanced output
| Model | AU8KETL-G1 | AU10KETL-G1 | AU12KETL-G1 |
| PV INPUT | |||
| Max.DC Input Power [W] | 12000 | 15000 | 18000 |
| Max. DC Input Voltage [V] | 1000 | ||
| MPPT Operating Voltage Range [V] | 200-800 | ||
| Starting Voltage[V] | 150 | ||
| Max. Input Current[A] | 18 | 36/18 | 36/18 |
| Number Of MPP Trackers | 2 | ||
| Strings Per MPP Tracker | 1 | 2/1 | 2/1 |
| AC OUTPUT_ GRID | |||
| Rated Output Power [W] | 8000 | 10000 | 12000 |
| Max. Output Apparent Power [V] | 8800 | 11000 | 13200 |
| Rated Output Voltage [V] | 400 | ||
| Rated Output Frequency [Hz] | 50/60 | ||
| Max. Output Current [A] | 13.3 | 16.7 | 20 |
| Output Power Factor | 1 (-0.8 leading~+0.8 lagging) | ||
| AC OUTPUT _ TWO BACKUP | |||
| Full Max. Output Power[W] | 8000 | 10000 | 12000 |
| Max. Output Apparent Powe [W,sec] | 16000,15 | 20000,15 | 24000,15 |
| Rated Output Voltage [V] | 400(±2%) | ||
| Rated Output Frequency [Hz] | 50/60（±0.2%） | ||
| Backup1 Max. Output Power [W] | 8000 | 10000 | 12000 |
| Backup2 Max. Output Power [W] | 8000 | 10000 | 12000 |
| Output Power Factor(off grid) | -0.8 leading~+0.8 lagging | ||
| Output Current Harmonic Distortion | THD<3%(Nonlinear load); THD<1.5%(Linear load) | ||
| Max. Output Current [A] | 13.3 | 16.7 | 20 |
| BATTERY PARAMETERS | |||
| Battery Type | Lithium or lead acid battery | ||
| Voltage Range [V] | 44-60 | ||
| Rated Battery Voltage [V] | 48 | ||
| Max. Charge/Discharge Current [A] | 190 | 210 | 240 |
| BMS Communication | CAN/RS485 | ||
| Efficiency | |||
| Max efficiency(PV) | 98% | ||
| Max efficiency(cell) | 94.5% | ||
| Europe efficiency | 97.5% | ||
| Protection | |||
| DC Reverse-Polarity Protection | Yes | ||
| Short Circuit Protection | Yes | ||
| Output Over Current Protection | Yes | ||
| Output Over Voltage Protection | Yes | ||
| Insulation Resistance Monitoring | Yes | ||
| Residual Current Detection | Yes | ||
| Surge Protection | Yes | ||
| Grid Monitoring | Yes | ||
| Islanding Protection | Yes | ||
| Temperature Protection | Yes | ||
| Integrated DC Switch | Yes | ||
| OTHER PARAMETERS | |||
| Operating Temperature Range (°C) | -25~+60 | ||
| Storage Temperature Range (°C) | -30~65 | ||
| Humidity Range | 0~95% | ||
| Operating Altitude | ≤4000 | ||
| Ingress Protection | IP66 | ||
| Topology | HF isolation (Battery side) | ||
| Noise [dB] | <25 | ||
| Communication | RS485/CAN/WiFi/Ethemnet/4G | ||
| Cooling Method | Natural | ||
| Size (W×H×D) [mm] | 475*683*256 | ||
| Weight [Kg] | 38 | ||
| Loading data [pc] | 384/40HQ 140/20GP | ||
| Warranty | 5 years | ||
| STANDARD | |||
| EN62109-1/2,IEC62109-1/2 ,EMC61000,EN50549, IEC61727,IEC62116,IEC61683,VDE 4105/0124 | |||
