AFCI Intergrated
Feeder into the grid
1Self-consumption
Peak shaving
Support for parallel operation
I&M operation
Off-grid switching
Dry node start generator

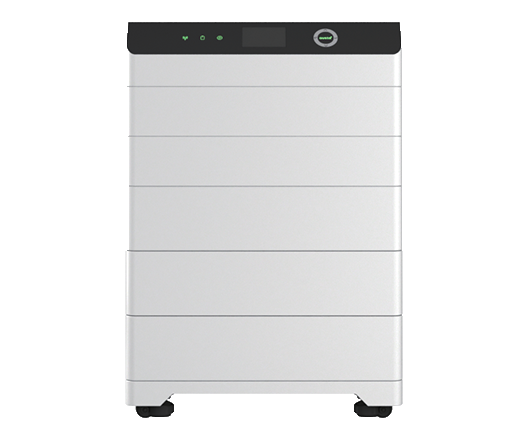

| High Voltage Hybrid Inverter-3phase | 5-8KW/10KWH | 6-10KW/15KWH | 10-12KW/20KWH | 10-15KW/25KWH | 10-15KW/30KWH |
| TPV INPUT | |||||
| Max.DC Input Power[W] | 7500-12000 | 9000-15000 | 15000-18000 | 15000-22500 | |
| Max. DC Input Voltage[V] | 1000 | ||||
| Rated DC Input Voltage[V] | 620 | ||||
| Start-Up Voltage[V] | 160 | ||||
| MPPT Voltage Range[V] | 160-950 | ||||
| Max. Input Current[A] | 18/36 | ||||
| Max. Short Circuit Current[A] | 23/46 | ||||
| Number Of MPP Trackers | 1/1 | 1/2 | |||
| AC INPUT | |||||
| Rated Input Voltage[V] | 400/380,3L/N/PE | ||||
| Max. Input Power[V] | 10000-16000 | 12000-20000 | 20000-24000 | 20000-30000 | |
| Max. Input Current[A] | 15.2-24.3 | 18.2-30.3 | 30.3-36.4 | 30.3-45.5 | |
| AC OUTPUT_ GRID | |||||
| Rated Output Power[W] | 5000-8000 | 6000-10000 | 10000-12000 | 10000-15000 | |
| Max. Output Apparent Power[V] | 5500-8800 | 6600-11000 | 11000-13200 | 11000-16500 | |
| Rated Output Voltage[V] | 400/380,3L/N/PE | ||||
| Rated Output Frequency[Hz] | 50/60 | ||||
| Max. Output Current[A] | 8.3-13.3 | 10-16.5 | 16.5-20 | 16.5-25 | |
| THDi | <2% | ||||
| Output Power Factor | adjustable +/-0.8 | ||||
| AC OUTPUT _ OFF GRID | |||||
| AC Output (Backup) | 400/380 | ||||
| Rated Output Frequency[Hz] | 50/60 | ||||
| Rated Output Power[V] | 5000-8000 | 6000-10000 | 10000-12000 | 10000-15000 | |
| Max. Output Current[A] | 7.6-12.1 | 9.1-15.2 | 15.2-18.2 | 15.2-22.7 | |
| THDv | 3% | ||||
| Switch Time[ms] | <10 | ||||
| EFFICIENCY | |||||
| MPPT Efficiency | 99.9% | ||||
| Max. Efficiency | 97.9%-98.2% | 98%-98.2% | 98.2%-98.4% | ||
| Euro. Efficiency | 96.8%-97.1% | 96.8%-97.2% | 97.2%-97.4% | ||
| OTHER PARAMETERS | |||||
| Operating Temperature Range[°C] | -25~+60 | ||||
| Storage Temperature Range[°C] | -30~+65 | ||||
| Humidity Range | 0~95% | ||||
| Operating Altitude[m] | <3000 | ||||
| Protection Degree | IP66 | ||||
| Topology | Transformerless | ||||
| Parallel Mode | Intergrated, max 10pcs | ||||
| Communication | WiFi / RS485/ CAN (BMS) | ||||
| Display | LCD | ||||
| Cooling Method | Natural | Fan | |||
| BATTERY PARAMETERS | |||||

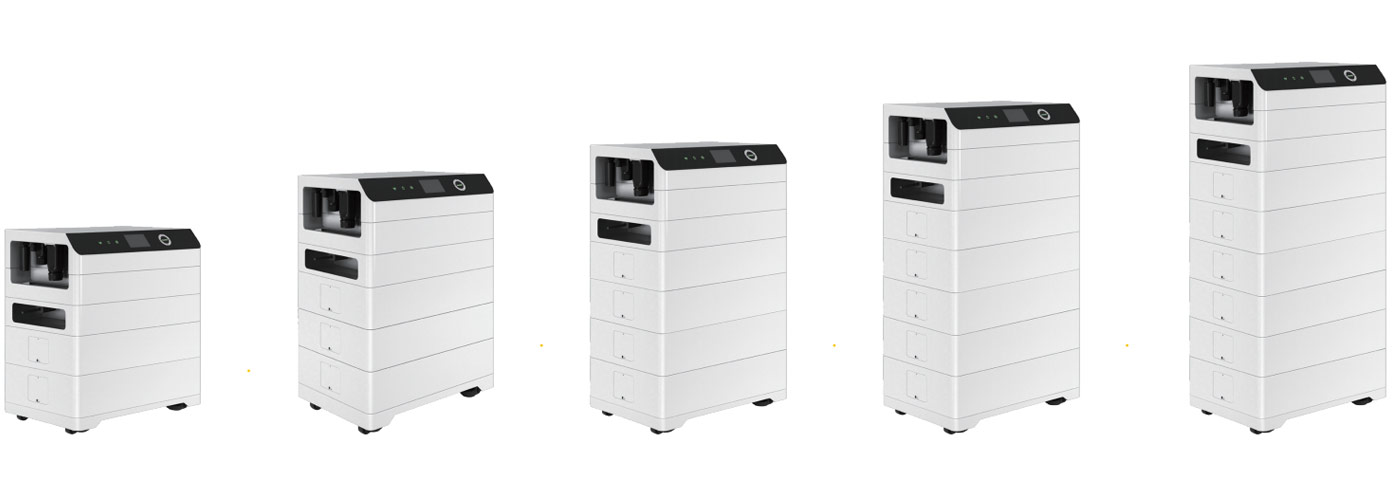

| Battery Module | 2 | 3 | 4 | 5 | 6 |
| Nominal Capacity[kWh] | 10.539 | 15.974 | 21.299 | 26.624 | 31.949 |
| Nominal Voltage[V] | 102.4 | 153.6 | 204.8 | 256 | 307.2 |
| Operating Voltage[V] | 76.4-106.4 | 114.7-159.7 | 153-213 | 191.2-266.2 | 230-319 |
| Max. Discharge[A] | 50 | ||||
| Charge Current[A] | 50 | ||||
| Battery Type | LiFePO4 | ||||
| Cell Configuration | 2P32S | 2P48S | 2P64S | 2P80S | 2P96S |
| Charging operating temperature[°C] | Charge: 0~+50 Discharge: -20~+55 | ||||
| Discharging operating temperature[°C] | -20~+35 | ||||
| Transportation SOC | 30% | ||||
| Life Cycles | >6000 @ 25°C, 0.5C, 90%DOD | ||||
| Altitude[m] | ≤2000 | ||||
| Ingress Protection | IP65 | ||||
| Installation | Ground-mounted | ||||
| Size (W×H×D)[mm] | 600×590×240 | 600×770×240 | 600×950×240 | 600×1130×240 | 600×1310×240 |
| Weight[kg] | 70.1 | 97.9 | 125.7 | 153.5 | 181.3 |
| Rated Capacity | Test conditions: cell voltage 2.5V-3.65V, 25±3°C temperature range, 0.5C charge and discharge | ||||
| Available Capacity | Test conditions: 90% depth of discharge, 25±3°C temperature range, 0.5C charge and discharge | ||||

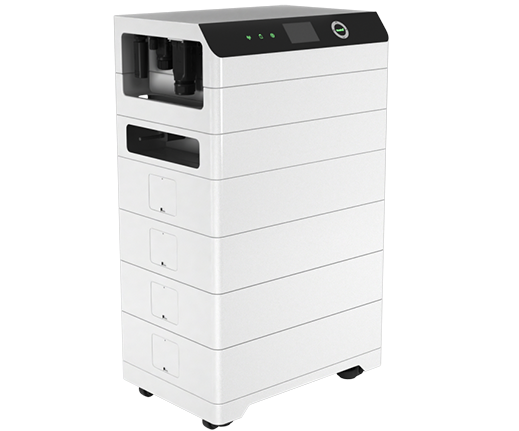

High-Voltage Modular Energy Storage Units

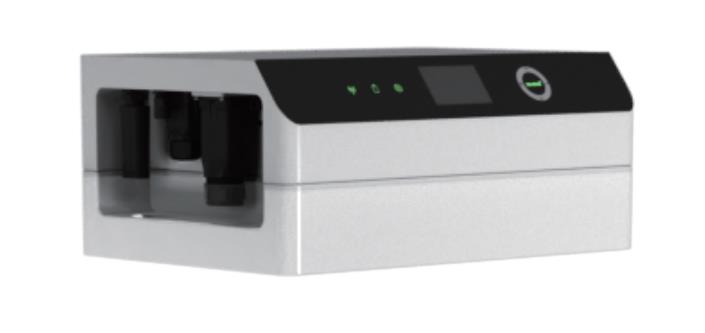

| HIGH-VOLTAGE INVERTER MODULE | |
| Model Name | AU4-15KETH-AIO |
| Max. DC Input Voltage[V] | 1000 |
| Rated DC Input Voltage[V] | 620 |
| Start-Up Voltage[V] | 160 |
| MPPT Voltage Range[V] | 160-950 |
| Max. Input Current[A] | 18/36 |
| Max. Short Circuit Current[A] | 23/46 |
| Number Of MPP Trackers | 2 |
| Rated Input Voltage[V] | 400/380,3L/N/PE |
| Rated Output Frequency[Hz] | 50/60 |
| Max. Output Current[A] | 8.3-25 |

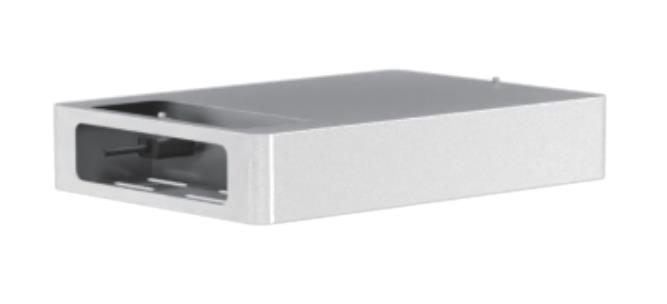

| HIGH-VOLTAGE BATTERY BMS | |
| Model Name | GH02-PDU |
| Capacity [Ah] | 104 |
| Rated Charge/Discharge Current [A] | 50 |
| Lifespan | >6000 @ 25°C,0.5C, 90%DOD |
| System Voltage Rating [°C] | Charging：0~+50, Discharging: -20~+55 |
| Dimensions [mm] | 670*396*120 |
| Level of Protection | IP65 |
| Installation | Floor standing |

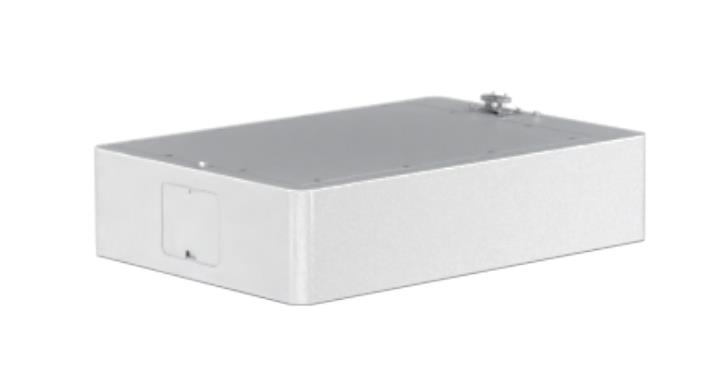

| HIGH-VOLTAGE BATTERY PACK MODULE | |
| Model Name | GH02-5324 |
| Capacity [Ah] | 104 |
| Rated Charge/Discharge Current [A] | 50 |
| System Voltage Rating [V] | 51.2 |
| Battery Type | LiFePO4 |
| Lifespan | >6000 @ 25°C,0.5C, 90%DOD |
| Operating Temperature Range | Charg：0~+50°C, Discharge: -20~+55°C |
| Weight [kg] | 50.3 |
| Dimensions [mm] | 460*670*120 |
| Level of Protection | IP65 |
| Installation | Floor standing |

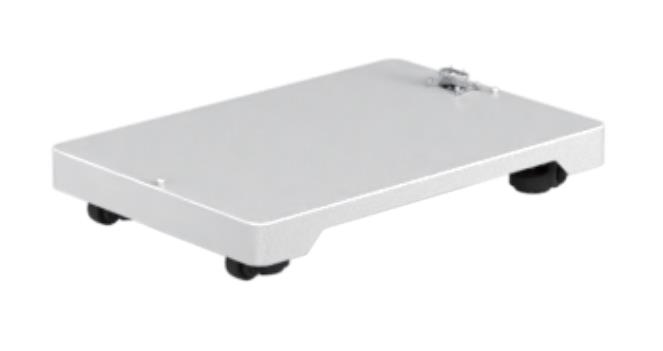

| HIGH-VOLTAGE BATTERY BASE | |
| Weight [kg] | 5.3 |
| Dimensions [mm] | 460*670*100 |
