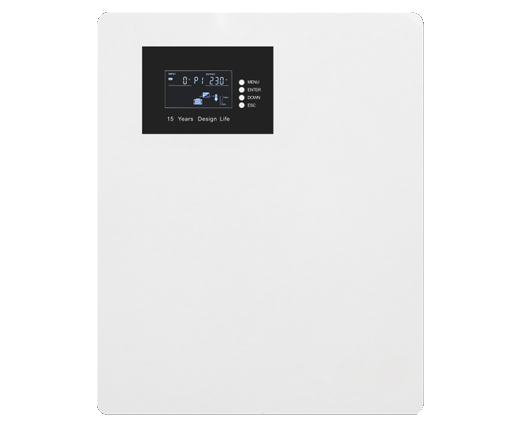

All In One Solar System
There are buttons under
the display to view status
andmodify settings
High frequency
solar inverter
6000cycles
LiFePO4 batteries
All in one design to solve
complicated cable connection
procedures plug and play
Integrated handles are
stylish and durable
MPPT solar
charge controller
Small size, weight 19kg
Can be installed with hanging
strips and hung on the wall
Protection for Charging
Discharging CircuitShort
/Open etc
High-power cooling
fan with dust-proof
screen at theair inlet
| 1K2500 | |
| BATTERY PARAMETERS | |
| Battery Rated Voltage [V] | 12.8 |
| Battery Capcity [Wh] | 1536 |
| Max. Battery Operating Current [A] | 120 |
| INVERTER PARAMETERS | |
| Max. AC Input Power [W] | 1000 |
| AC Input Voltage [V] | 90-280 |
| Rated Output Power [W] | 1000 |
| Output Voltage [V] | 230 |
| Output Frequency [Hz] | 50/60 Auto |
| Max. Output Current [A] | 5 |
| MPPT PV INPUT | |
| MPPT Voltage Range [V] | 20-100 |
| Max. PV Input Power [W] | 1000 |
| Charge Current Range [A] | 0-60 |
| MPPT Efficiency [%] | 99.5 Max |
| PV Input Voltage [V] | 15-125 |
| Max. PV Input Current [A] | 20 |
| GRID INPUT | |
| Max. Grid Input Current[A] | 9 |
| DC OUTPUT | |
| 5V USB Output | current limiting 2A Max |
| 12V DC5.5-2.1 Output | current limiting 2A Max |
| Type-C Output | power limiting 24W Max |
| OTHER PARAMETERS | |
| Temperature Control System | Smart Fan |
| Work environment temperature [°C] | -20~+50 |
| Storage environment temperature[°C] | -25~+55 |
| Operation/storage environment humidity [%] | 0-90 No Condensate |
| Package Size (W*L*H) [mm] | 555*450*250 |
