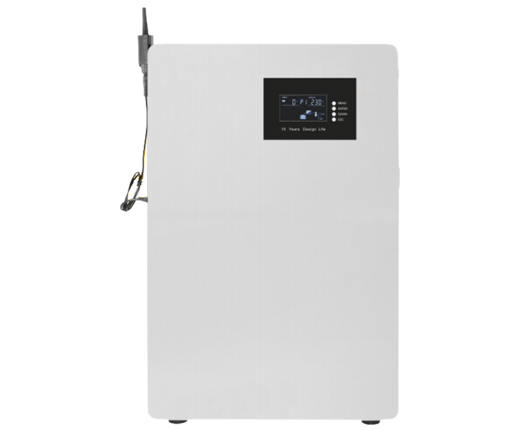

All In One Solar System
Colorful display interface
High frequency
solar inverter
6000cycles
LiFePO4 batteries
Smart WiFi remote
monitoring option
CE/UN38.3/MSDS
MPPT solar
charge controller
Protection for Charging
Discharging CircuitShort
/Open etc
High-power cooling
fan with dust-proof
screen at theair inlet
Superpose design to
save a lot installation space
| 6K5000 | |
| BATTERY PARAMETERS | |
| Battery Type | LiFe Po4 |
| Battery Rated Voltage [V] | 51.2 |
| Nominal Capacity [Ah] | 100 |
| Battery Capcity [KWh] | 5.12 |
| Cell configuration (whole system) | 1P16S |
| INVERTER PARAMETERS | |
| Max. AC Input Power [W] | 8000 |
| AC Input Voltage [V] | 90-280 |
| Rated Output Power [W] | 6200 |
| Output Voltage [V] | 230 |
| Output Frequency [Hz] | 50/60 |
| Max. Output Current [A] | 28 |
| MPPT PV INPUT | |
| MPPT Voltage Range [V] | 60-500 |
| Max. PV Input Power [W] | 6500 |
| Charge Current Range [A] | 0-60 |
| MPPT Efficiency [%] | 96 Max |
| PV Input Voltage [V] | 60-500 |
| Max. PV Input Current [A] | 27 |
| GRID INPUT | |
| Max. Grid Input Current[A] | 38 |
| Rated output voltage [V] | 220/230/240 |
| Nominal Grid Frequency [Hz] | 50/60 |
| DC OUTPUT | |
| 5V USB Output | current limiting 2A Max |
| 12V DC5.5-2.1 Output | current limiting 2A Max |
| Type-C Output | power limiting 24W Max |
| OTHER PARAMETERS | |
| Temperature Control System | Smart Fan |
| Work environment temperature [°C] | -20~+50 |
| Storage environment temperature[°C] | -25~+55 |
| Operation/storage environment humidity [%] | 0-90 No Condensate |
| Package Size (W*L*H) [mm] | 790*550*295 |
