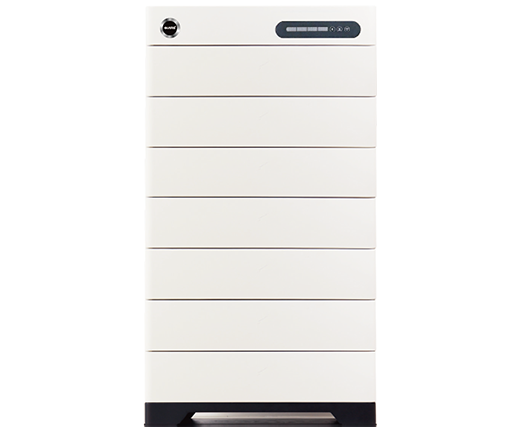

High Voltage Battery
Check the APP to find data on your phone.Remote diagnosis and OTA
52kg/105.8lb per battery box,easy to move and install Quick connector between boxes, no cable connecting
Lithium Iron Phosphate (LFP)cell only BMS,fuse and aerosol kit are built in connecting
Wider temperature range:-20C~+55C IP65 protection class

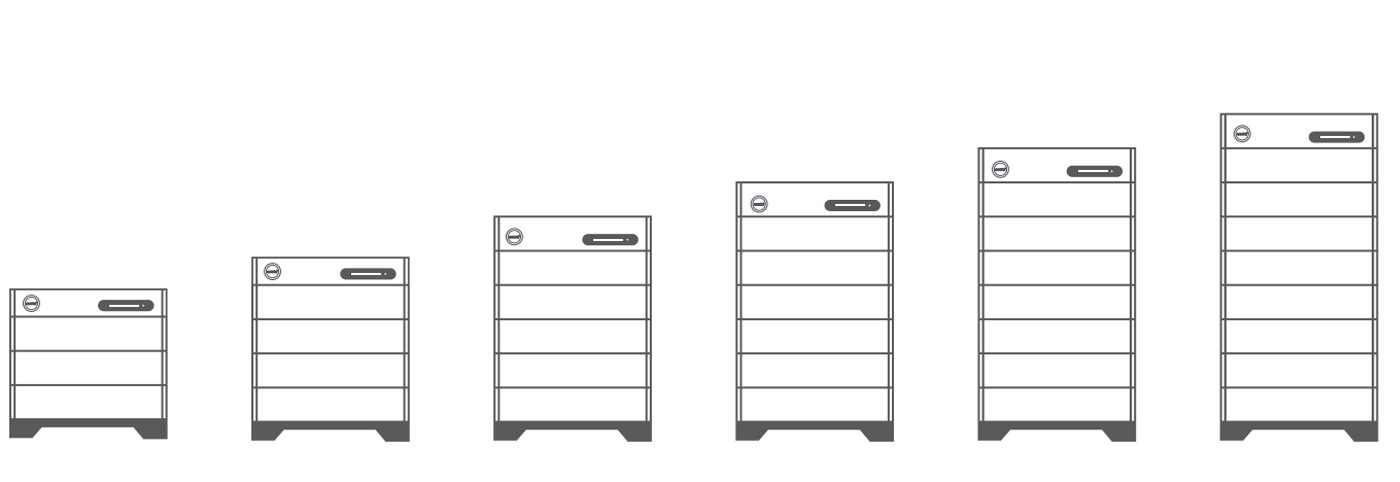

5kWh modular design,Scalable from 15kWh to 42kWh.
90%Depth of Discharge,more than 6000 cycles(0.5C,25C)
More than 15 years
| BATTERY MODULE | GH02-16K | GH02-21K | GH02-27K | GH02-32K | GH02-37K | GH02-43K |
| 3 | 4 | 5 | 6 | 7 | 8 | |
| Nominal Capacity [kWh] | 15.974 | 21.299 | 26.624 | 31.949 | 37.274 | 42.598 |
| Nominal Voltage [V] | 153.6 | 204.8 | 256 | 307.2 | 358.4 | 409.6 |
| Operating voltage [V] | 114.7-159.7 | 153-213 | 191.2-266.2 | 230-319 | 267.7-372.7 | 306-426 |
| Max.Discharge [A] | 50 | |||||
| Charge Current [A] | 50 | |||||
| Battery Type | LiFePO4 | |||||
| Connection | 2P48S | 2P64S | 2P80S | 2P96S | 2P112S | 2P128S |
| Technical Description | ||||||
| Charging operating temperature[℃] | Charge: 0°C~+50°C Discharge: -20°C~+55°C | |||||
| Working Temperature[℃] | -20~35℃ | |||||
| Transportation SOC | 30% | |||||
| Wi-Fi Module | Optional | |||||
| Life cycles | >6000 @ 25°℃,0.5C,90%DOD | |||||
| Altitude [m] | 14kg/220*606*220 | |||||
| Storage Temperature | ≤2000 | |||||
| Ingress Protection | IP65 | |||||
| Installation | Ground-mounted | |||||
| Dimensions (W*H*D) [mm] | 600×590×240 | 600×770×240 | 600×950×240 | 600×1130×240 | 600×1310×240 | 600×1310×240 |
| Weight | 70.1 | 97.9 | 125.7 | 153.5 | 181.3 | 181.3 |
| Rated capacity | Test conditions: cell voltage 2.5V-3.65V, 25±3°C temperature range, 0.5C charge and discharge | |||||
| Available capacity | Test conditions: 90% depth of discharge, 25±3°C temperature range, 0.5C charge and discharge | |||||
