1.6KW | 3KW | 3.6KW | 4KW | 5.5KW | 6.2KW | 6.5KW | 8.6KW | 11KW

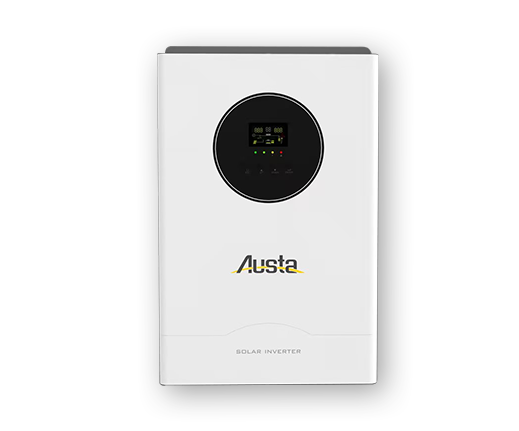

Off Grid/Hybrid Inverter
Dual back up output
Max.efficiency>95%
Campatible with grid and
support to sell electric energy
The parallel current can be
dynamically adjusted after paralleling
Normal operation of
olny-connection PV panels
The maximum current of
a single string module is 20A
Support dry contact
starting generator(Optional)
Supports multiple parallel
machines, up to 9 paralle
Supports three-phase output after
single-phase parallel operation
| Model | AU1.6KESL-OG | AU3KESL-OG | AU3.6KESL-OG | AU4KESL-OG | AU5.5KESL-OG | AU6.2KESL-OG | AU6.5KESL-OG | AU8.6KESL-OG | AU11KESL-OG |
| PV INPUT | |||||||||
| PV Charging Method | MPPT | ||||||||
| Max. PV Input Power [W] | 2000 | 5000 | 5000 | 6500 | 7500 | 7500 | 8500 | 2*5500 | 2*6500 |
| MPPT Tracking Range [V] | 40~500 | 60~500 | 60~500 | 60~500 | 60~500 | 60~500 | 60~500 | 90~500 | 90~500 |
| Frequency range | 500 | ||||||||
| Max. PV Input Current [A] | 13 | 18 | 18 | 27 | 27 | 27 | 27A (MAX.36A) | 27A (MAX.36A) | 27A (MAX.36A) |
| AC OUTPUT-GRID | |||||||||
| Output Voltage [V] | / | 208/220/230/240±5% (Feed-in Grid Voltage Range:195~253) | |||||||
| Frequency [Hz] | / | 50/60±0.1% | |||||||
| Output Curren [A] | / | 13.6 | 16.3 | 16.3 | 23.9 | 26.9 | 26.9 | 34.7 | 47.8 |
| Power Factor | / | >0.99 | |||||||
| AC OUTPUT -LOAD | |||||||||
| Rated Power [W] | 1600 | 3000 | 3600 | 4000 | 5500 | 6200 | 6500 | 8600 | 11000 |
| Dual Output Power [W] | / | 3000/3000 | 3600/3600 | 3600/3600 | 5500/5500 | 6200/6200 | 6200/6200 | 8600/8600 | 11000/11000 |
| Second Load Cut Off Voltage [V] | / | 22 | 44 | ||||||
| Second Load Return Voltage [V] | / | 26 | 52 | ||||||
| Output Voltag[V] | 208/220/230/240±5% | 220/230/240±5% | |||||||
| Output Wave | Pure Sine Wave | ||||||||
| Transfer Time(Adj ustable) | 10ms for Computer Equipment,20ms for Household Equipment | ||||||||
| Peak Power [V] | 3200 | 6000 | 7200 | 7200 | 11000 | 12400 | 12400 | 17200 | 22000 |
| Overload Ability | Battery Mode ∶21s@102%~110% load 10s@110%~130% load 3s@130%-150% load 400ms@>150% load | 21s@105%~150% Load 11s@150%~200% Load 400ms@>200% |
|||||||
| Frequency | 50/60±0.1% | ||||||||
| Peak Efficiency(Battery Model) | 94% | 94% | 98% | 94% | 94% | 98% | 94% | 94% | 94% |
| AC INPUT | |||||||||
| Input Formation | L+N+PE | ||||||||
| AC Inpu [V] | 220/230/240 | ||||||||
| Input Voltage Range [V] | 90-280VAC±3V(Normal Mode)185-264VAC±3V (UPS Mode) | ||||||||
| BATTERRY PARAMETERS | |||||||||
| Rated Voltage [V] | 12 | 24 | 48 | ||||||
| Constant Charging Voltage | 14.1 | 28.2 | 56.4 | ||||||
| Float Charging Voltage | 13.5 | 27 | 54 | ||||||
| Max. PV Charge Current [A] | 100 | 100 | 120 | 120 | 100 | 120 | 100 | 120 | 150 |
| Max. AC Charge Current [A] | 60 | 60 | 100 | 100 | 100 | 100 | 100 | 120 | 150 |
| Max. Charge Current [A] | 100 | 100 | 120 | 120 | 100 | 120 | 120 | 150 | 150 |
| OTHERS | |||||||||
| Operating temperature [°C] | 0~40 | -15~60 | |||||||
| Storage Temperature [°C] | -15~60 | ||||||||
| Operating Humidity | 20%~95%(Non-condensing) | ||||||||
| Operating Altitude [m] | No more than 1000m, If 1000m <,Rate power will lower, MAX 4000m, Refer | ||||||||
| Noise [dB] | ≤50 | ||||||||
| LCD | LCD ALREADDY, LED TOUCH SCREEN OPTIONAL | ||||||||
| RS232 | 5PIN/Pitch2.54mm,Baud Rate 2400 | ||||||||
| Expansion Slot Communication Interface | 2 × 5PIN/Pitch2.54mm ，Lithium battery BMS communication card 、WIFI, etc | ||||||||
| Parallel Interface | Not Support Parallel | Support Parallel Optional | |||||||
| L*W*H | 395*285*118 | 495*312*125 | 570.8*500*148.2 | ||||||
| Weight [Kg] | 7 | 11 | 11.2 | 11.2 | 11.8 | 12 | 12 | 22.3 | 22.5 |
| Ingress Protection | IP21 | ||||||||
| Warranty | 2 years | ||||||||
| STANDARD | |||||||||
| EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1，IEC 61683 | |||||||||
