Low Voltage Battery
Max. Charging Current
Ah Capacity
Life Cycles
Warranty of

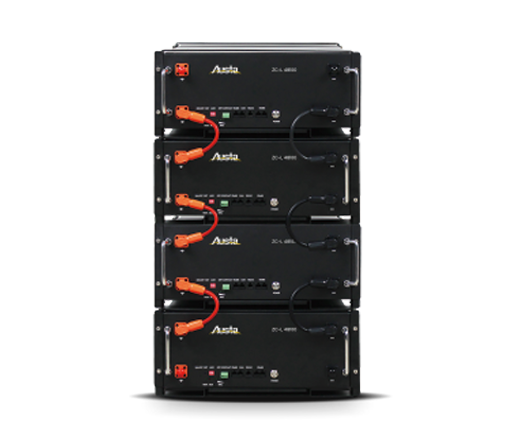

Expandable
2-15 units can be expanded
Safer to Use
High-density LiFePO4 battery
Long Battery Life
6000 cycles life ( DoD 80% )
Plug and play
For easier installation
Stable & Reliable
Advanced BMS management
Widely Compatible
Compatible with mainstream inverters
| Modell | ZC-L 48100 |
| BASIC INFORMATION | |
| Nominal Voltage [V DC] | 48 |
| Voltage Range [V] | 40.5-54.75 |
| Nominal Capacity [Ah] | 100 |
| Rated Capacity [kWh] | 4.8 |
| Communication Protocol | CAN / RS485 / RS232 |
| Max. Number of Parallel Connections | 15 |
| Cycle Life | 6000 cycles (@80% DoD) |
| Protection Mechanism | Temperature Protection/Over-current Protection/Short-circuit Protection Over-charge Protection/Over-discharge Protection/Low-voltage Protection |
| CHARGING PARAMETERS | |
| Recommended Charging Current [A] | 50 |
| Max. Charging Current [A] | 100 |
| Recommended Charging Voltage [V] | 54 |
| Max. Charging Voltage [V] | 54.75 |
| DISCHARGING PARAMETERS | |
| Recommended Discharging Current [A] | 50 |
| Max. Discharging Current [A] | 100 |
| Recommended Battery Discharge Cut-off Voltage [V] | 41.25 |
| Battery Cut-off Voltage [V] | 40.5 |
| Battery Recovery Voltage [V] | 45 |
| GENERAL PARAMETERS | |
| Dimension [mm] | 500*484*178 |
| Weight [kg] | 48 |
| Shell Material | Sheet Metal |
| Protection Rating | IP20 |
| Installation Method | Rack Mode |
| Cell Type | LiFePO4 |
| CERTIFICATION & SAFETY STANDARD | |
| Safety Certification | CE |
| Temperature Safety Certification | UN38.3,Class9 |
| TEMPERATURE PARAMETERS | |
| Discharging Temperature | -20~65 |
| Charging Temperature | 0~55 |
| Storage Temperature | -20~45 |
