Low Voltage
Friendly size and weight
10.24kWh-LiFePO4 battery cells
Multi-protection from BMS
Long cycle lifeSpan with lower costs

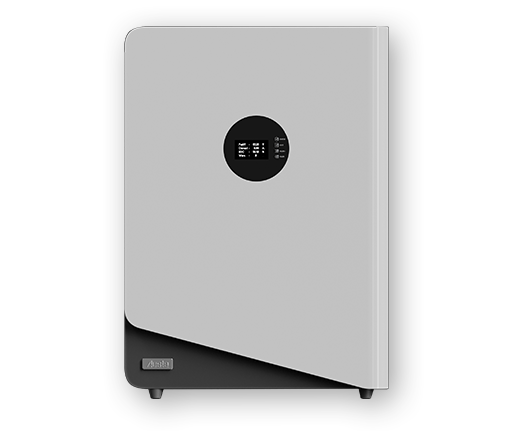

| AU51100-W | |
| BATTERY MODULE | |
| Rated Capacity [kWh] | 5.12 |
| Available Capacity [kWh] | 4.60 |
| Battery Module (single-pack) | 51.2V-100Ah |
| Rated Power [kWh] | 2.56 (0.5P) |
| Rated Voltage (whole system) [V] | 51.2 |
| Operating Voltage Range [V] | 41.6-58.4 |
| Rated Continuous Current | 50 (0.5C) |
| Charging Voltage [V] | 57.6 supports wide voltage operation |
| Charging Current [A] | ≤50 (configurable) |
| Continuous Discharge Current [A] | ≤100 (configurable) |
| Maximum Discharge Current [A] | 100 (1C) |
| Maximum Discharge Power [kW] | 5.12 |
| Life Cycles | ≥6000@0.2C |
| Number Of Modules (for the whole system) | 2 |
| Cell Type | LF100LA (3.2V-100Ah) |
| Cell Configuration (whole system) | 16S/1P |
| Rated Capacity | Test conditions: cell voltage 2.6V-3.65V, 25 ± 3°C temperature range, 0.5C charge and discharge |
| Active Volume | Test conditions: 90% discharge depth, 25 ± 3°C temperature range, 0.5C charge and discharge |
| BMU MODULE PARAMETERS | |
| Typology | 16 string charge and discharge the same port |
| Overcharge Charging Voltage [V] | 3.60±0.01 (configurable) |
| Overcharge Release Voltage [V] | 3.40±0.01 (configurable) |
| Balanced Way | Charge equalisation |
| Equalizing Current [mA] | ≤100±10 |
| Balanced Start Voltage [mV] | 3400±20 |
| Overdischarge Protection Voltage [V] | 2.7±0.05 (configurable) |
| Short-Circuit Protection | Short circuit detection 500A delay 100us |
| Discharge Protection And Recovery Mode | Recovery threshold auto-recovery (charging current detected by charging activation (≥ 1A)) |
| TECHNICAL DESCRIPTION | |
| Size (W×H×D)[mm] | 550*570*196 (±0.5） |
| Weight [kg] | 54±1 |
| Operating Temperature [°C] | Charge:0~+50/Discharge:-20~+50 |
| Storage Temperature [°C] | -20~+45 (one month) 0~35 (1 year) SOC: ≥50% |
| Ingress Protection | IP65 |
| Cooling | Natural cooling |
| Hhumidity Leve [%] | ≤95 |
| Elevations [m] | ≤2000 |
| Communication Method | 485/CAN (customisable) |
| Fire Fighting Methods | Aerosolsc |
| Fire-Fighting Mode And Trigger Time | Hot start aerosol with feedback BMS protection lead device;Protection space≤0.8m³, trigger time≤3S |
| Way To Install | Wall mounting type |
| STANDARD | IEC 62619，EN IEC 61000-6-1，EN IEC 61000-6-2，EN IEC 61000-6-3，EN IEC 61000-6-4 |
