300W ~ 1.6KW

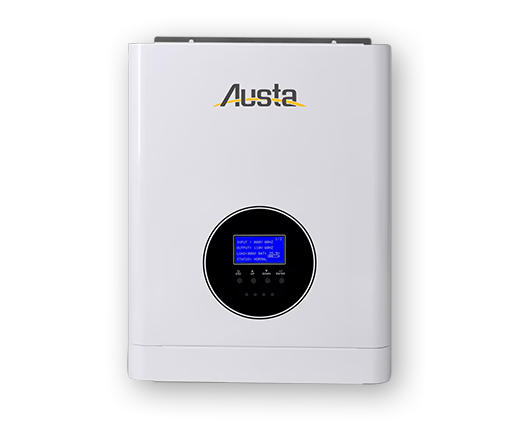

Off Grid Inverter
MPPT Efficiency Max
Conversion Time
Maximum Solar Charge Current
Power Saving Mode Load
Approved of CE/IEC 62109-1/UL 1741 /CSA certifications
Power saving function, intelligent speed control fans
Pure sine wave AC output, high PV input voltage
Support lead-acid and lithium battery connections
Grid power bypass and inverter output modes
| Model | AU0.3KESL-OGLF | AU0.5KESL-OGLF | AU0.8KESL-OGLF | AU1KESL-OGLF | AU1.2KESL-OGLF | AU1.6KESL-OGLF |
| Power input | 220VAC (standard) / 110VAC (customised) | |||||
| Input voltage range |
220V model: 154-264VAC±3V (normal mode) 185-264VAC±3V (UPS mode) \110V model: 77-132VAC±3V (normal mode) 92-132VAC±3V (UPS mode) |
|||||
| Input frequency | 50/60Hz±5% | |||||
| Rated output power | 300W | 500W | 800W | 1000W | 1200W | 1600W |
| Output voltage under mains | The output voltage under mains is the same as the input voltage | |||||
| Output frequency under mains | The output frequency under mains power is the same as the input frequency | |||||
| Output voltage under inverter | 220Vac±10% (110Vac±10%) | |||||
| Output frequency under inverter | 50HZ/60HZ±1% | |||||
| Inverter output waveform | Simple harmonic vibration | |||||
| Battery type | External lead-acid or water batteries or lithium batteries | |||||
| Battery voltage | 12VDC | |||||
| Battery charge voltage | 13.7VDC | |||||
| Maximum PV array power | 12V: 800W | |||||
| PV input voltage range (MPPT) | 12V: PWM 15V-30VDC (50VDC for customisation) | |||||
| Maximum PV display open circuit voltage | 12V: PWM 30VDC (50VDC for customisation) | |||||
| Optimum Vmp operating range | 12V: PWM 15V-20VDC | |||||
| Maximum solar charge current | 60A | |||||
| Maximum AC charge current | 10A | 15A | 19A | 25A | 29A | 29A |
| Conversion time | ≤10ms (UPS mode)/≤20ms (INV mode) | |||||
| Peak load ratio | （MAX)3:1 | |||||
| Standby power consumption (W) |
Toroidal Power Transformers 12V machine: 8W |
|||||
| Protection function |
Under mains power: input overcurrent without fuse switch protection Under inverter: overload protection, short-circuit protection, low voltage protection, battery reverse connection protection (fuse) |
|||||
| Status display |
Colour segment code screen plus LED display You can view, AC Voltage, AC Frequency, PV Voltage, PV Current, Output Voltage, Output Frequency, Battery Voltage, Load Current and other parameters by using the page turn key LED display of mains power, charging status, inverter status, fault status |
|||||
| Rated Output Power(VA) |
Buzzer according to the fault code, the alarm sound is different, with a long and short tone to distinguish between |
|||||
| Operating temperature | 0℃~40℃ | |||||
| Storage temperature | -15℃~45℃ | |||||
| Relative temperature | -10℃~90℃no condensation | |||||
| Noise level | ＜45dB | |||||
| Machine size(L*W*H)mm | 345*254*105 |
400*270*120 (customised chassis for FS customers in South Africa) |
||||
| No load Loss | 430*333*173(Carton) 435*325*170(Colour box) |
400*270*120 (colour box) |
||||
| Random accessories | EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1 | |||||
