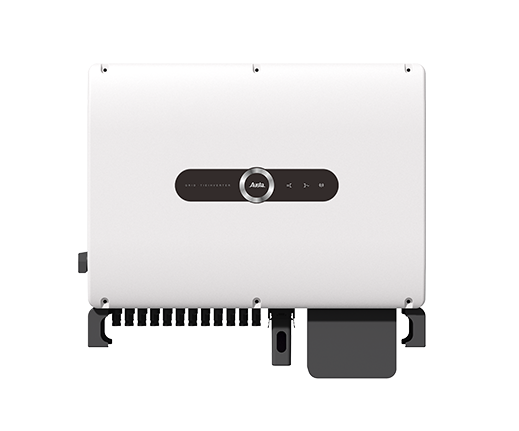

AU50/60/70/75K3P
Three Phase
On Grid Inverter
Small size, light weight, support manual installation, reduce user installation and maintenance cost
Transformerless, Max. Efficiency is up to 98.8%; Euro. Efficiency is up to 98.3%; Total current THD < 2%
Active and passive, anti-islanding protection, continuously adjustable, active power (0-100%) function
CQC Gold Sun Certification, TUV Certification, SAA Certification, CE Certification
Model | AU50K3P-G5 | AU60K3P-G5 | AU70K3P-G5 | AU75K3P-G5 |
Input | ||||
Max. DC input power | 65000W | 78000W | 91000W | 97500W |
Max. DC input voltage | 1100V | |||
Max. DC input current | 45/45/45A | |||
MPPT voltage range | 250~1000V | |||
Recommended MPP operating voltage | 650V | 740V | ||
No.of MPPT | 3 | |||
Max. no. of strings per MPPT | 3 | 4 | ||
Output | ||||
Rated output power | 50000W | 60000W | 70000W | 75000W |
Max. output power | 55KVA | 66KVA | 77KVA | 82.5KVA |
Max. output current | 80A | 96A | 89A | 95A |
Rated grid voltage | 400V | 500V | ||
Grid voltage range | 310~480Vac | 422~550Vac | ||
Rated grid frequency | 50Hz/60Hz | |||
Grid frequency range | 45~55Hz/55~65Hz | |||
THD | <2% (Under the rated power) | |||
Power factor | >0.99(rated power) /0.8 leading ~ 0.8 lagging | |||
DC current injection | <0.5% (Under the rated power) | |||
System data | ||||
Max. efficiency | 98.7% | 98.9% | 99% | |
Euro. efficiency | 98.3% | 98.5% | 98.5% | |
Humidity range | 0~100%, non-condensing | |||
Cooling type | Intelligent forced air cooling | |||
Temperature range | -25~+60℃ | |||
Power consumption at night | < 1W | |||
Max. working altitude | 4000m | |||
Display | LED/LCD(optional) | |||
Communication interface | Wifi/RS485/GPRS | |||
Protection | ||||
DC reverse-polarity protection | Yes | |||
Short circuit protection | Yes | |||
Output over current protection | Yes | |||
Output over voltage protection | Yes | |||
Insulation resistance monitoring | Yes | |||
Residual current detection | Yes | |||
Surge protection | Yes | |||
Grid monitoring | Yes | |||
Islanding protection | Yes | |||
Temperature protection | Yes | |||
Integrated DC switch | Yes | |||
Mechanical data | ||||
Dimensions (WxHxD) | 681x660x282mm | |||
Weight | 47Kg | |||
Protection class | IP66 | |||
Standard | ||||
Grid-connected standard | NB/T 32004-2018;IEC61727 | |||
Safety standard | NB/T 32004-2018;IEC 62109-1/2 | |||
Electromagnetic compatibility | IEC61000-6-2/4 |
