AU110W-18M
110W Flexible Solar Panel
Model Type | AU110W-18M |
ELECTRICAL DATA(STC) PV DRAWINGS | |
Peak Power(Pmax) | 110 |
Maximum Power Voltage(Vmp) | 20.12 |
Maximum Power Current(Imp) | 5.47 |
Open Circuit Voltage(Voc) | 23.52 |
Short Circuit Current(Isc) | 5.78 |
Module Efficiency(﹪) | 17.83 |
TEMPERATURE&MAXIMUM RATING | |
Maximum System Voltage(V) | 1000 |
Maximum Series Fuse Rating(A) | 10 |
Power Tolerance | 0~+3﹪ |
Pmax Temperature Coefficients(W/℃) | -0.350﹪ |
Voc Temperature Coefficients(V/℃) | -0.270﹪ |
Isc Temperature Coefficients(A/℃) | +0.048﹪ |
NOCT Nominal Operating Cell Temperature(℃) | 45±2 |
Operating and Storage Temperature(℃) | -40~+85 |
MECHANICAL CHARACTERISTICS | |
Cell Type | 166*83Mono |
No. of Cells | 36(4x9) |
Dimensions | 730*845*2.5mm |
N.W. | 2.3kg |
Junction box | IP67 |
Output cables | 2.5mm² cable 90cm+mc4 |
MaxWind Load/Snow Load | 2400Pa/5400Pa |
QUALIFICATIONS AND CERTIFICATES | |

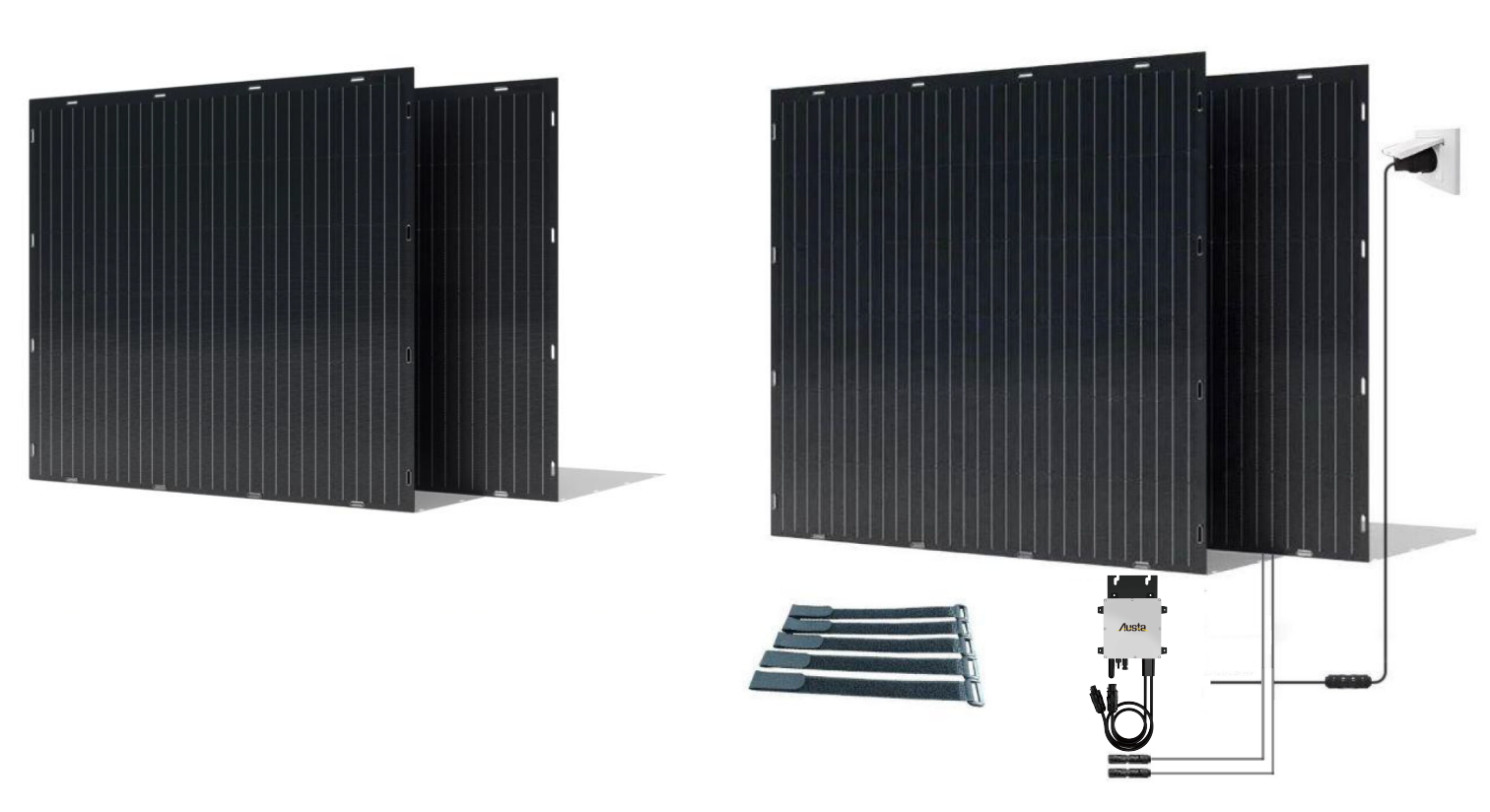

Solar System Pictures | |

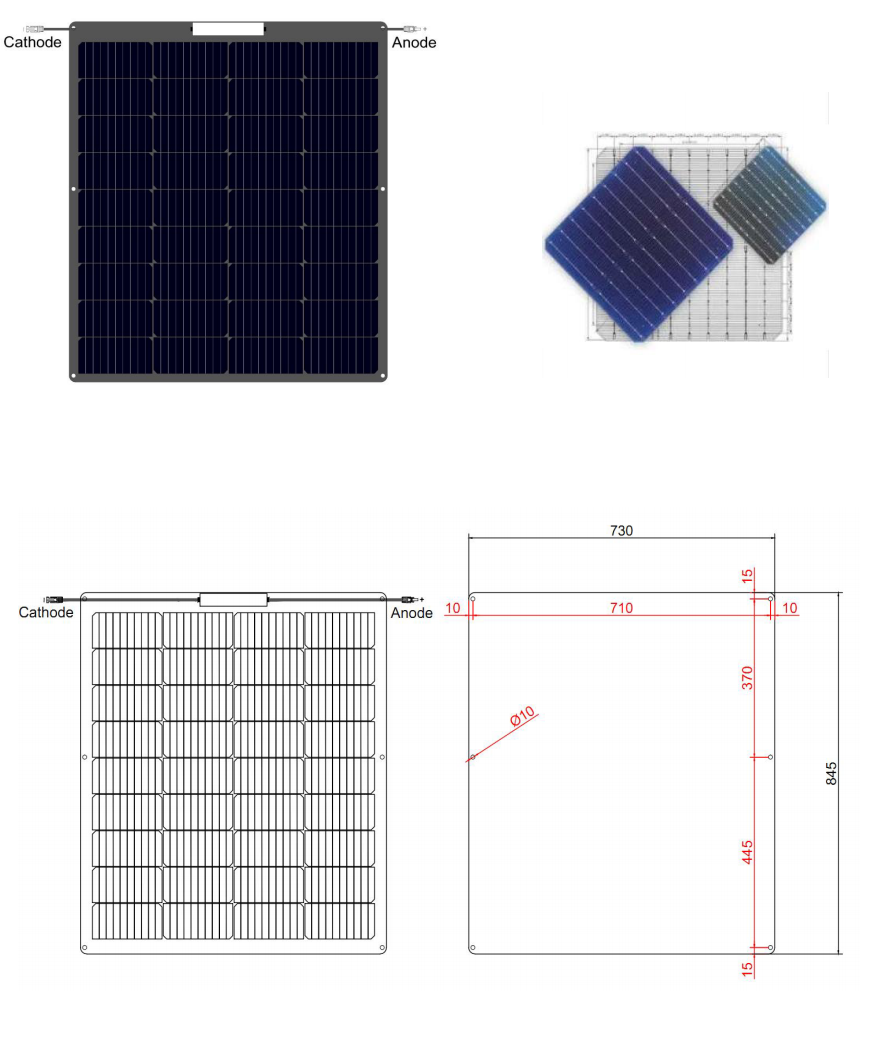

PV DRAWINGS | |
WARRANTY | 5Years |
