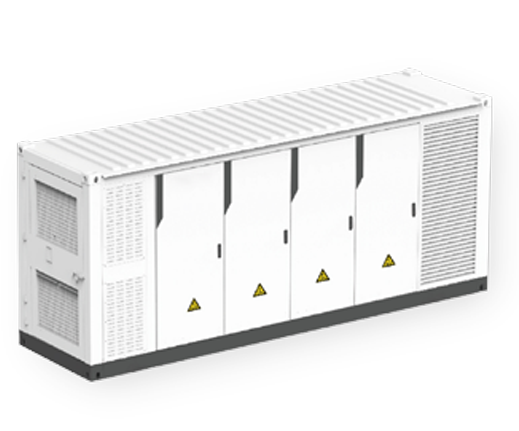

Containerized Liquid Cooling ESS
Approved industry certification of Cell pass test by UL/TUV/IEC
Multi-level design for fire control
Built-in early warning detection system
IP54 rating for cabinet
Industry leading LFP cell technology up to10,000 cycles with high thermal stability
Modular battery and cooling equipment are designed for better temperature control
Integrated performance control for local and remote monitonng
Data logging for component level status monitoring
Realtime system operation analysis on terminal screen
Modular design supports ease of installation, expansion, and maintenance
ESS self-diagnosis and healing function
Supports remote maintenance and upgrades
| Battery Parameters | |
| Cell Type | LFP 3.2V/280Ah |
| Configuration | 6P256S |
| Nominal Capacity | 1.376MWh |
| DOD | 100%(Max) |
| Life Cycle | 8,000 |
| DC Voltage Range | 640V-934.4V |
| BMS Communication Interface | RS485,CAN,Ethernet |
| Standard&Certification | IEC62619,IEC63056,IEC61000,IEC62133,UL1973,UL1642 |
| AC Parameters | |
| AC Nominal Power | 600kVA |
| THDi | <3%(rated power) |
| Rated Grid Voltage | 380V,3W+N+PE |
| Power Factor | >0.99 |
| Operating Grid Frequency | 50Hz±5Hz |
| Grid Frequency Range | ±5Hz |
| Isolation Type | Non-isolated |
| Communication Interface | RS485,Ethemet.CAN |
| Protection Function | Anti-Islanding protection,AC overcurrent protection,AC surge protection |
| Certification | 1EC61000-6-2, IEC61000-6-4 |
| Basic Parameters | |
| Enclosure Dimensions (W*H*D) | 6,058*1,800*2,591mm |
| Weight | -16T |
| Enclosure IP Rating | IP54 |
| Battery Pack IP Rating | IP66 |
| Operating Temperature | -30℃~+50℃ |
| Relative Humidity | 5%~95%, non-condensing |
| Max.Altitude (above sea level) | 3000 m(>2000m derating) |
| Cooling Mode | Intelligent forced air cooling+liquid cooling |
| Fire Suppression System | Aerosol+immersive fire suppression system for battery packs+active alert system |
| Communication Interface | RS485, Ethernet, CAN |
| Communication Protocol | Modbus TCP, Modbus RTU, CAN 2.0 |
