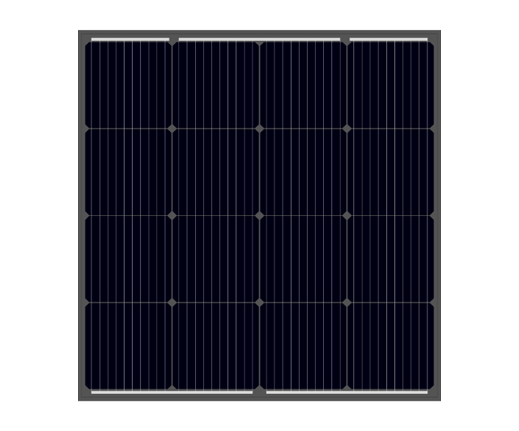

AU120W-8M
120W Flexible Solar Panel
| Model Type | AU110W-18M |
| ELECTRICAL DATA(STC) PV DRAWINGS | |
| Peak Power(Pmax) | 120 |
| Maximum Power Voltage(Vmp) | 9.2 |
| Maximum Power Current(Imp) | 13.05 |
| Open Circuit Voltage(Voc) | 10.62 |
| Short Circuit Current(Isc) | 13.72 |
| Module Efficiency(﹪) | 19.85 |
| TEMPERATURE&MAXIMUM RATING | |
| Maximum System Voltage(V) | 1000 |
| Maximum Series Fuse Rating(A) | 10 |
| Power Tolerance | 0～+3﹪ |
| Pmax Temperature Coefficients(W/℃) | -0.350﹪ |
| Voc Temperature Coefficients(V/℃) | -0.270﹪ |
| Isc Temperature Coefficients(A/℃) | +0.048﹪ |
| NOCT Nominal Operating Cell Temperature(℃) | 45±2 |
| Operating and Storage Temperature(℃) | -40～+85 |
| MECHANICAL CHARACTERISTICS | |
| Cell Type | 182x182Mono |
| No. of Cells | 16(4x4) |
| Dimensions | 785*770*30mm |
| N.W. | 6.35kg |
| Front Glass | 3.2mm high transmission,low iron,tempered glass |
| Frame | Anodized Aluminium Alloy |
| Junction box | IP65/IP67 |
| Output cables | 4mm² cable 90cm+mc4 |
| MaxWind Load/Snow Load | 2400Pa/5400Pa |
| QUALIFICATIONS AND CERTIFICATES | |
|
|
|

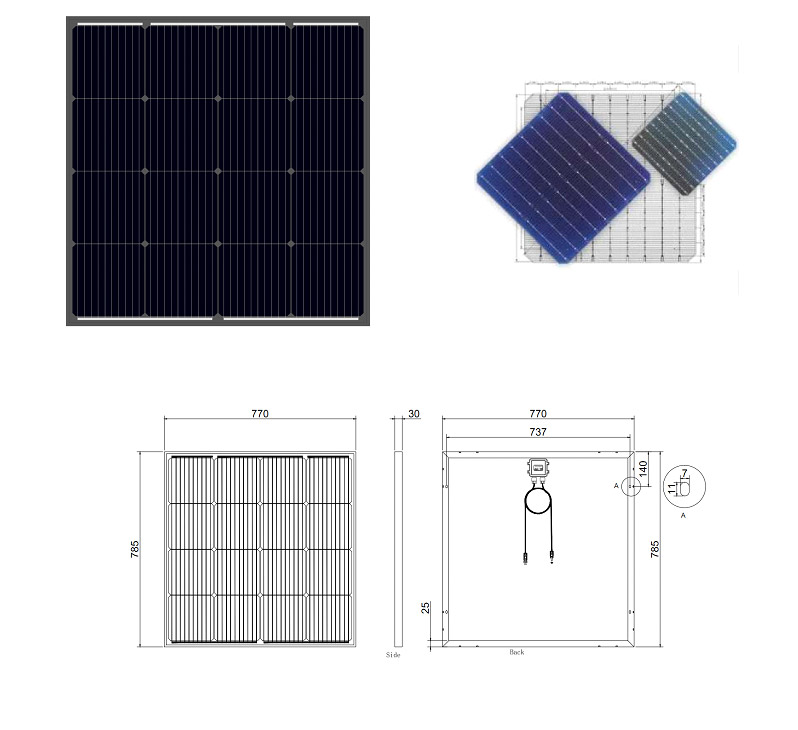

| PV DRAWINGS | |
|
|
|

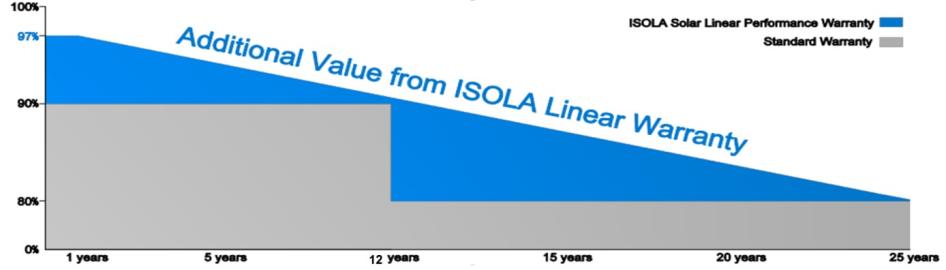

| WARRANTY | |
|
|
|
Guarantee on product material and workmanship
