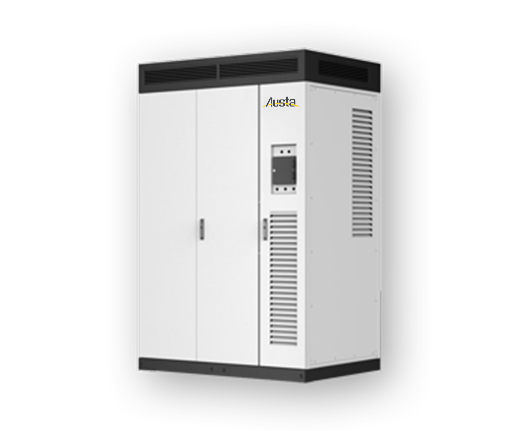

Energy Storage Integrated Cabinet
Max System Efficiency
Noise
Operating Temperature
Supports BMS and EMS system linkage
The system has multiple protections
All in one design, highly integrated
Small size, high power density
Maximum system efficiency 90%
High efficiency three-level topology
All in one design, highly integrated
Small size, high power density
| Model number | SES-100K |
| Ac parameter | |
| Rated AC power | 100kW |
| Connection mode | Three phase three wire |
| Ac overload capacity | 110kW |
| Allowable grid voltage | 380/400 （-15%~10%）Vac |
| Allowable grid frequency | 50/60（-2.5~2.5）Hz |
| Total current harmonic distortion rate | ≤3% |
| Power factor | 0.99/-1~1 |
| Battery side parameter | |
| Battery type | LFP 280Ah |
| Battery system configuration | 1P224S |
| Rated voltage | 716.8V |
| Battery voltage range | 627.2~795.2V |
| Electric quantity | 200kWh |
| System parameter | |
| noise | ＜75dB |
| Class of protection | IP54 |
| Allowable ambient temperature | -20~60℃ |
| Cooling mode | Air cooling |
| Allowable relative humidity | 0~95%(no condensation) |
| Cabinet Dimensions (W x H x D) | 1700*2300*1000 mm |
| Allowable altitude | 3000m(Derating greater than 3000m) |
| Cabinet weight | 3.5t |
| Maximum system efficiency | 90% |
| Communication parameter | |
| Communication interface | RS 485，Ethernet，CAN |
| Communication protocol | Modbus TCP/RTU，CAN2.0 |
