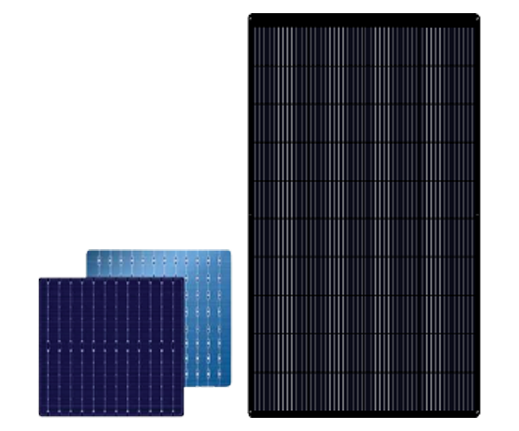

AU200W-20M

200W Flexible Solar Panel

Product FEATURES

Front plate fluorine composite design4.3kg/㎡,70% weight reduction



Reliable material advanced process TUV certification Product quality assurance inspection

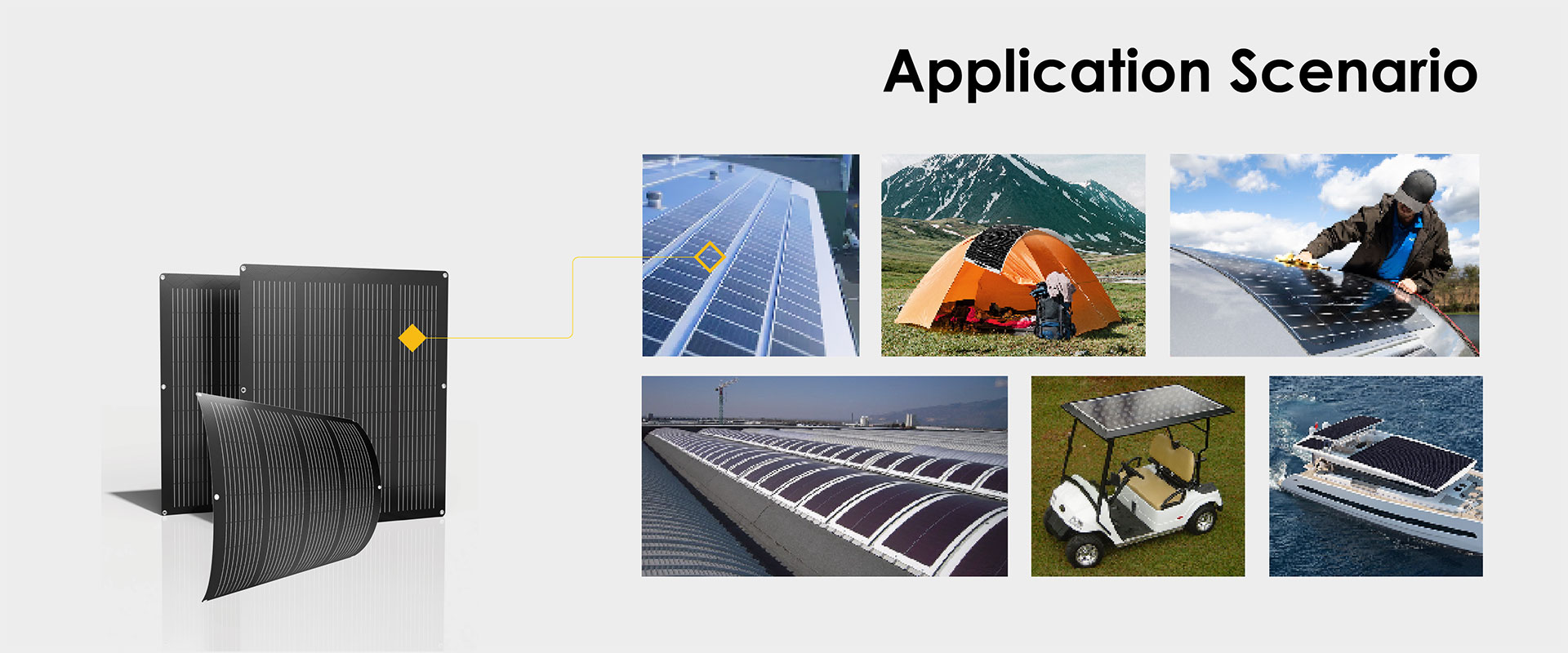

The system does not require a stand tape / structural adhesive quick installation direct fit installation wide range of application scenarios

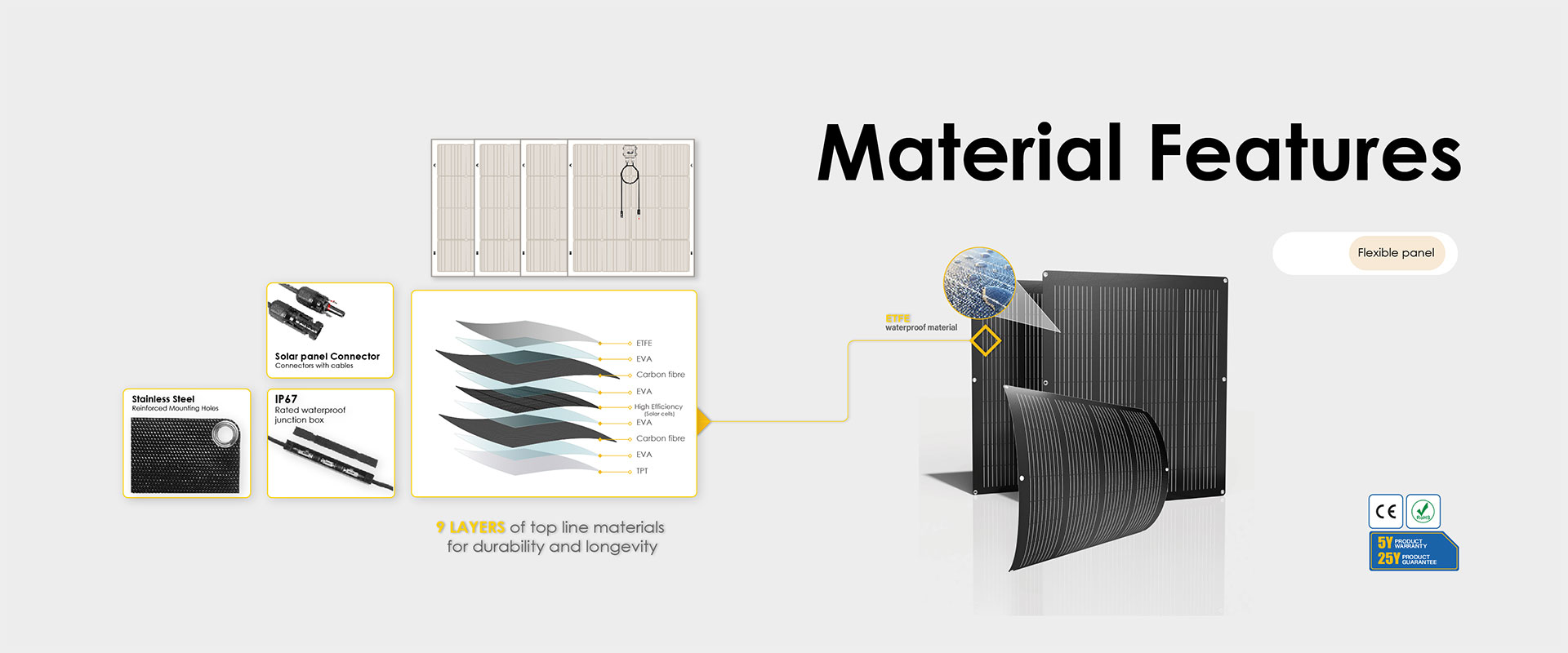

Advanced Module Packaging Technology High-performance packaging materialsspecial oxygen composites and Waterproof and fireproof back panel combination



DETAILED PARAMETERS
Model Type AU200W-20M
ELECTRICAL DATA(STC) PV DRAWINGS
Peak Power(Pmax) 200
Maximum Power Voltage(Vmp) 22.62V
Maximum Power Current(Imp) 8.85A
Open Circuit Voltage(Voc) 26.57V
Short Circuit Current(Isc) 9.36A
Module Efficiency(﹪) 19.8
* STC: irradiance 1000 W/m2, AM 1.5G, and cell temperature of 25°C
THERMAL CHARACTERISTICS & OPERATING CONDITIONS
Maximum System Voltage(V) 1000
Maximum Series Fuse Rating(A) 10
Power Tolerance 0~+3﹪
Pmax Temperature Coefficients(W/℃) -0.400﹪
Voc Temperature Coefficients(V/℃) -0.330﹪
Isc Temperature Coefficients(A/℃) +0.048﹪
NOCT Nominal Operating Cell Temperature(℃) 45±2
Operating and Storage Temperature(℃) -40~+85
MECHANICAL CHARACTERISTICS
Cell Type 210*105Mono
No. of Cells 40(4*10)
Dimensions 1135*905*3mm
N.W. 3.7kg
Junction box IP65/IP67
Output cables 2.5mm² - 50cm cables + mc4
MaxWind Load/Snow Load 2400Pa/5400Pa
PACKING WAY
20FT Packages / PCS
40HQ Packages / PCS
