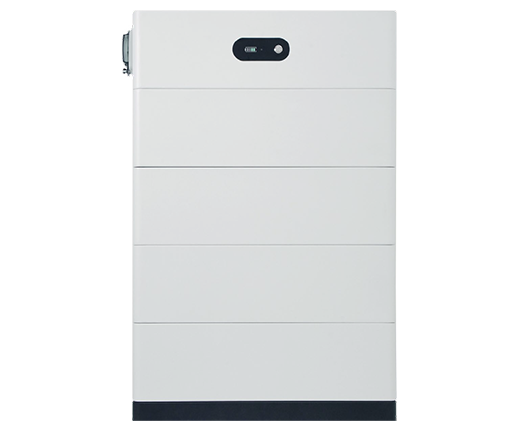

High Voltage Battery
24kg/52.9lb per battery box,easy tomove and install.Quick connectorbetween boxes, no cable connecting
Check the APP to find data on your phone.Remote diagnosis and OTA.

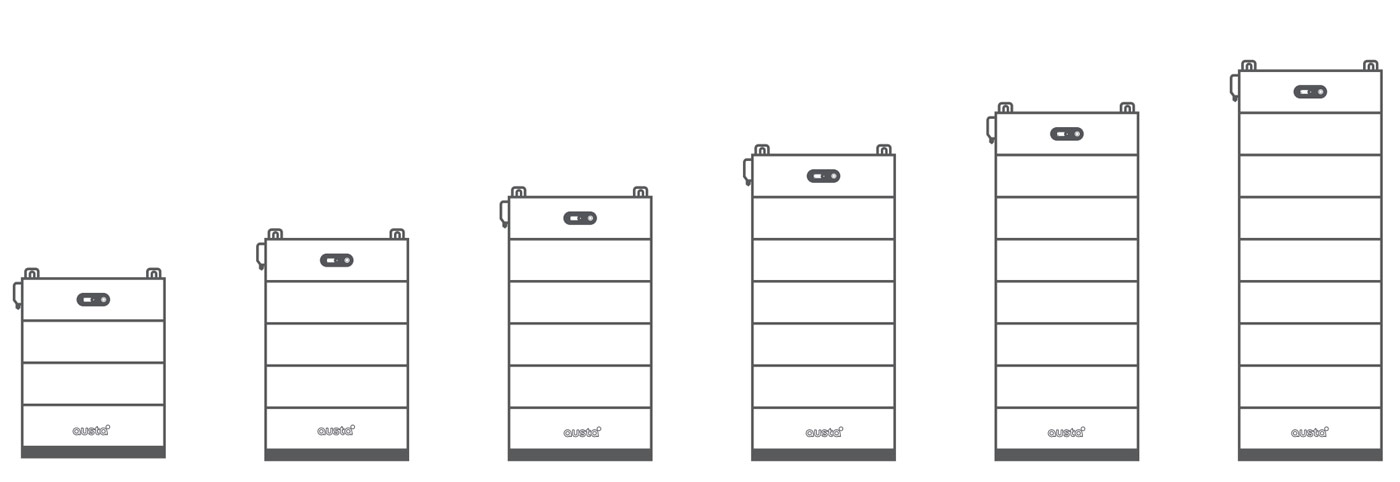

2.5kWh modular design,Scalable from 7.5kWh to 20kWh.
Wider temperature range:-20C~+55C. IP65 protection class.
Lithium Iron Phosphate(LFP)cell only. BMS,fuse and aerosol kit are built in.
90%Depth of Discharge,more than 6000 cycles(0.5C,25C)
More than 15 years
| BATTERY MODULE | GroundHV-7.5K | GroundHV-10K | GroundHV-12.5K | GroundHV-15K | GroundHV-17.5K | GroundHV-20K |
| 3 | 4 | 5 | 6 | 7 | 8 | |
| Nominal Capacity [kWh] | 7.488 | 9.984 | 12.48 | 14.976 | 17.472 | 19.968 |
| Nominal Voltage [V] | 144 | 192 | 240 | 288 | 336 | 384 |
| Voltage Working Range [V] | 114.7-159.7 | 153-213 | 191.2-266.2 | 230-319 | 267.7-372.7 | 306-426 |
| Max.Discharge [A] | 35 | |||||
| Charge Current [A] | 35 | |||||
| Battery Type | LiFePO4 | |||||
| Connection | 1P45S | 1P60S | 1P75S | 1P90S | 1P105S | 1P120S |
| Technical Description | ||||||
| Capacity | 52Ah | |||||
| Working Temperature[℃] | Charge:0°C~+50°C/ Discharge: -10°C~+55°C | |||||
| Transportation SOC | 30% | |||||
| Wi-Fi Module | Optional | |||||
| Each Pack | 23.5kg/220*580*170 | |||||
| PDU+Base | 14kg/220*606*220 | |||||
| Storage Temperature | -20°C~+35°C | |||||
| Protection Level | IP65 | |||||
| Installation | Ground-mounted | |||||
| Dimensions (W*H*D) [mm] | 606*730*220 | 606*900*220 | 606*1070*220 | 606*1240*220 | 606*1410*220 | 606*1580*220 |
| PDU/Pack Package Dimension [mm] | 606*220*225 | |||||
| Weight | ~80kg/ 176lb | ~105kg/ 231lb | ~129kg/ 284lb | ~152.3kg/ 335lb | ~176.2kg/ 388lb | ~199.5kg/ 438lb |
