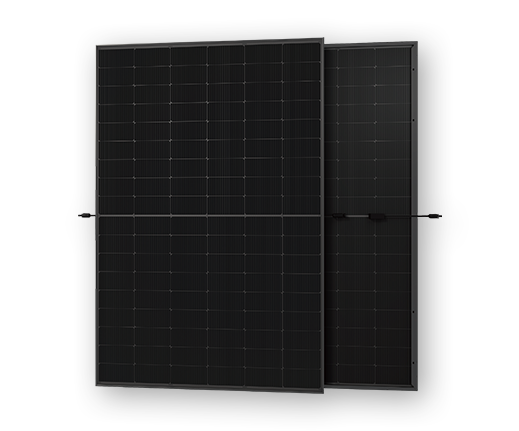

AU-108MHBD
Solar Module
Solar Module
Guarantee
Warranty
Lower power loss
Lower temperature coefficient
Higher double-sided revenue
Better performance in lower
light environment
Lower shipping cost on per watt
Lower levelized cost on energy
| Model type | AU420-27V-MHBD | AU425-27V-MHBD | AU430-27V-MHBD | AU435-27V-MHBD | AU440-27V-MHBD |
| Peak Power (Pmax) | 420.00 | 425.00 | 430.00 | 435.00 | 440.00 |
| Maximum Power Voltage (Vmp) | 31.71 | 31.90 | 32.08 | 32.26 | 32.44 |
| Maximum Power Current (Imp) | 13.25 | 13.32 | 13.40 | 13.48 | 13.56 |
| Open Circuit Voltage (Voc) | 38.31±3% | 38.50±3% | 38.69±3% | 38.87±3% | 39.05±3% |
| Short Circuit Current (Isc) | 13.99±3% | 14.06±3% | 14.14±3% | 14.21±3% | 14.9±3% |
| Module Efficiency (%） | 21.51 | 21.76 | 22.02 | 22.28 | 22.54 |
| Power Tolerance | 0~+3W | ||||
| Pmax Temperature Coefficients (W/℃) | -0.300%/℃ | ||||
| Voc Temperature Coefficients (V/℃) | -0.250%/℃ | ||||
| Isc Temperature Coefficients (A/℃) | +0.046%/℃ | ||||
| NOCT Nominal Operating Cell Temperature (℃) | 45±2℃ | ||||
| Operating and Storage Temperature (℃) | -40w+85℃ | ||||
| Standard Test Condition (STC) | 1000W/m2,AM1.5;25+/-2℃ | ||||
| Cell Type | 182*91 N-Type Black Mono |
| No.of Cells | 108(12*9) |

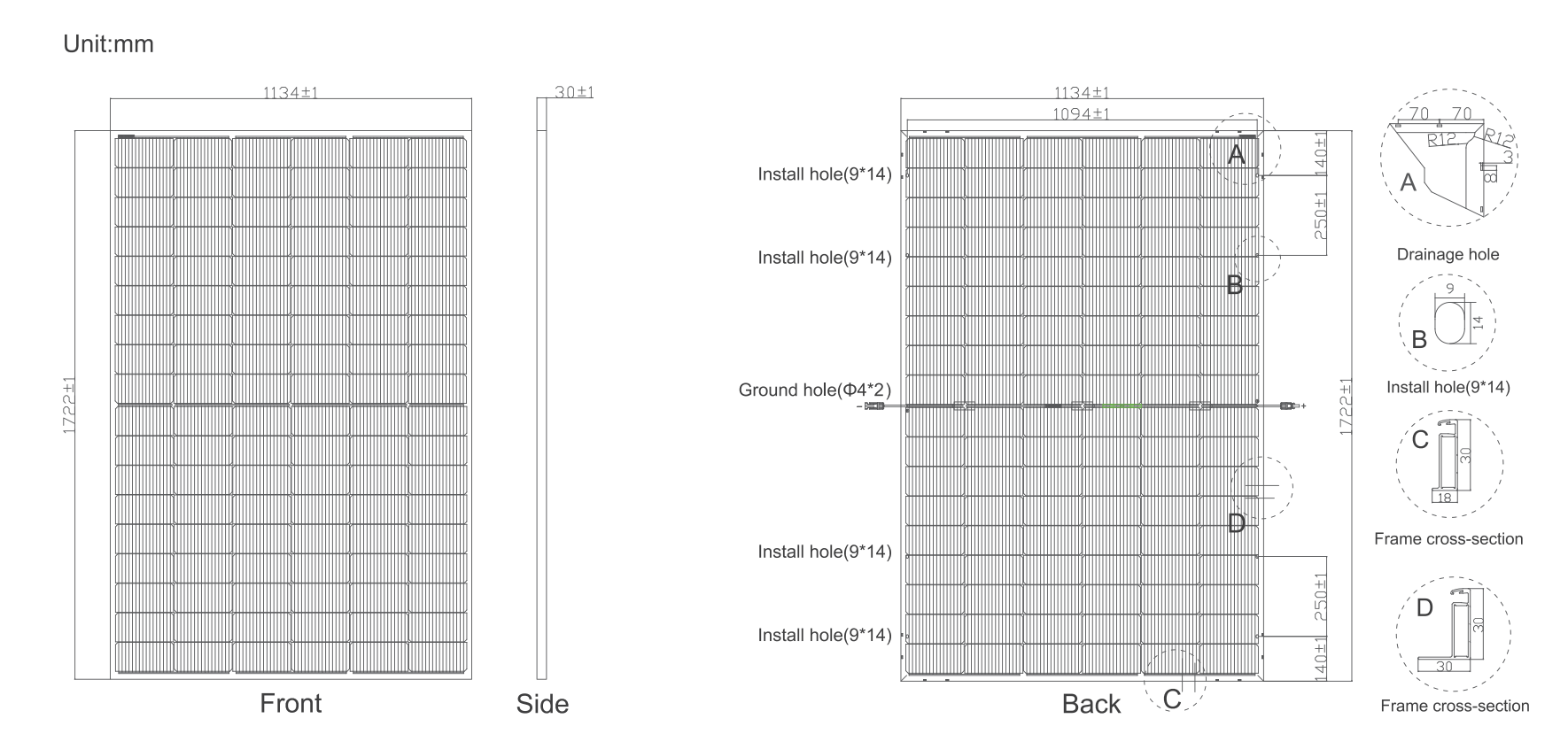

| Dimensions(mm） | 1722*1134*30mm |
| Weight | 24.70kg |
| Front Glass(mm) | 2.0mm high transmission,low iron,tempered glass |
| Back Glass(mm) | 2.0mm Glazed Glass |
| Frame | Anodized Aluminium Alloy |
| Maximum System Voltage (V) | 1500V |
| Maximum Series Fuse Rating(A) | 30 A |
| Junction box | IP68 3diodes |
| Output cables | 4mm2 cable 90cm (Including MC4 connector) |
| MaxWind Load/Snow Load | 2400Pa/5400Pa |
| 20FT container | 6 Packages/222pcs |
| 40HQ container | 26 Packages/962pcs |
