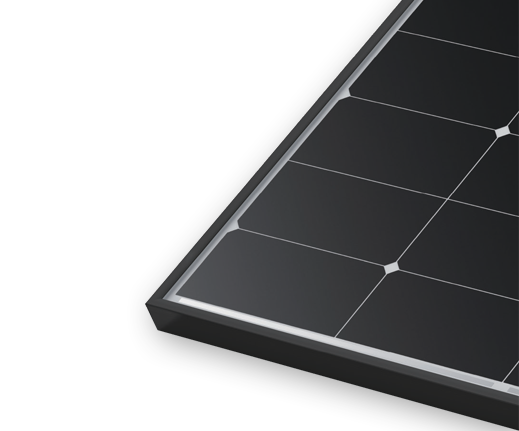

AU-108MH
Solar Module
Lower power loss
Lower temperature coefficient
Higher double-sided revenue
Better performance in lower
light environment
Lower shipping cost on per watt
Lower levelized cost on energy
Model type | AU415-27V-MH | AU420-27V-MH | AU425-27V-MH | AU430-27V-MH | AU435-27V-MH | AU440-27V-MH |
ELECTRICAL DATA(STC) | ||||||
Peak Power(Pmax) | 415.00 | 420.00 | 425.00 | 430.00 | 435.00 | 440.00 |
Maximum Power Voltage (Vmp) | 32.24 | 32.44 | 32.64 | 32.84 | 33.04 | 33.24 |
Maximum Power Current (Imp) | 12.88 | 12.95 | 13.03 | 13.10 | 13.17 | 13.24 |
Open Circuit Voltage (Voc) | 38.53±3% | 38.73±3% | 38.93±3% | 39.13±3% | 39.33±3% | 39.53±3% |
Short Circuit Current (Isc) | 13.92±3% | 14.00±3% | 14.07±3% | 14.15±3% | 14.22±3% | 14.29±3% |
Module Efficiency (%) | 21.26 | 21.51 | 21.77 | 22.03 | 22.28 | 22.54 |
ELECTRICAL DATA(NOCT) | ||||||
Peak Power(Pmax) | 310.00 | 314.00 | 318.00 | 321.00 | 325.00 | 329.00 |
Maximum Power Voltage(Vmp) | 29.42 | 29.60 | 29.78 | 29.97 | 30.15 | 30.33 |
Maximum Power Current(Imp) | 10.54 | 10.60 | 10.67 | 10.72 | 10.78 | 10.85 |
Open Circuit Voltage(Voc) | 36.18±3% | 36.36±3% | 36.55±3% | 36.74±3% | 36.93±3% | 37.12±3% |
Short Circuit Current(Isc) | 11.24±3% | 11.31±3% | 11.36±3% | 11.43±3% | 11.49±3% | 11.56±3% |
TEMPERATURE MAXIMUM RATING | ||||||
Maximum System Voltage(V) | 1500V | |||||
Maximum Series Fuse Rating(A) | 25A | |||||
Power Tolerance | 0~+3W | |||||
Pmax Temperature Coefficients(W/℃) | -0.290%/℃ | |||||
Voc Temperature Coefficients(V/℃) | -0.230%/°℃ | |||||
Isc Temperature Coefficients(A/℃) | +0.050%/℃ | |||||
NOCT Nominal Operating Cell Temperature(℃) | 45±2℃ | |||||
Operating and Storage Temperature(℃) | -40~+85℃ | |||||
MECHANICAL CHARACTERISTICS | ||||||
Cell Type | 182*91 HPBC Mono | |||||
No.of Cells | 108(12*9) | |||||

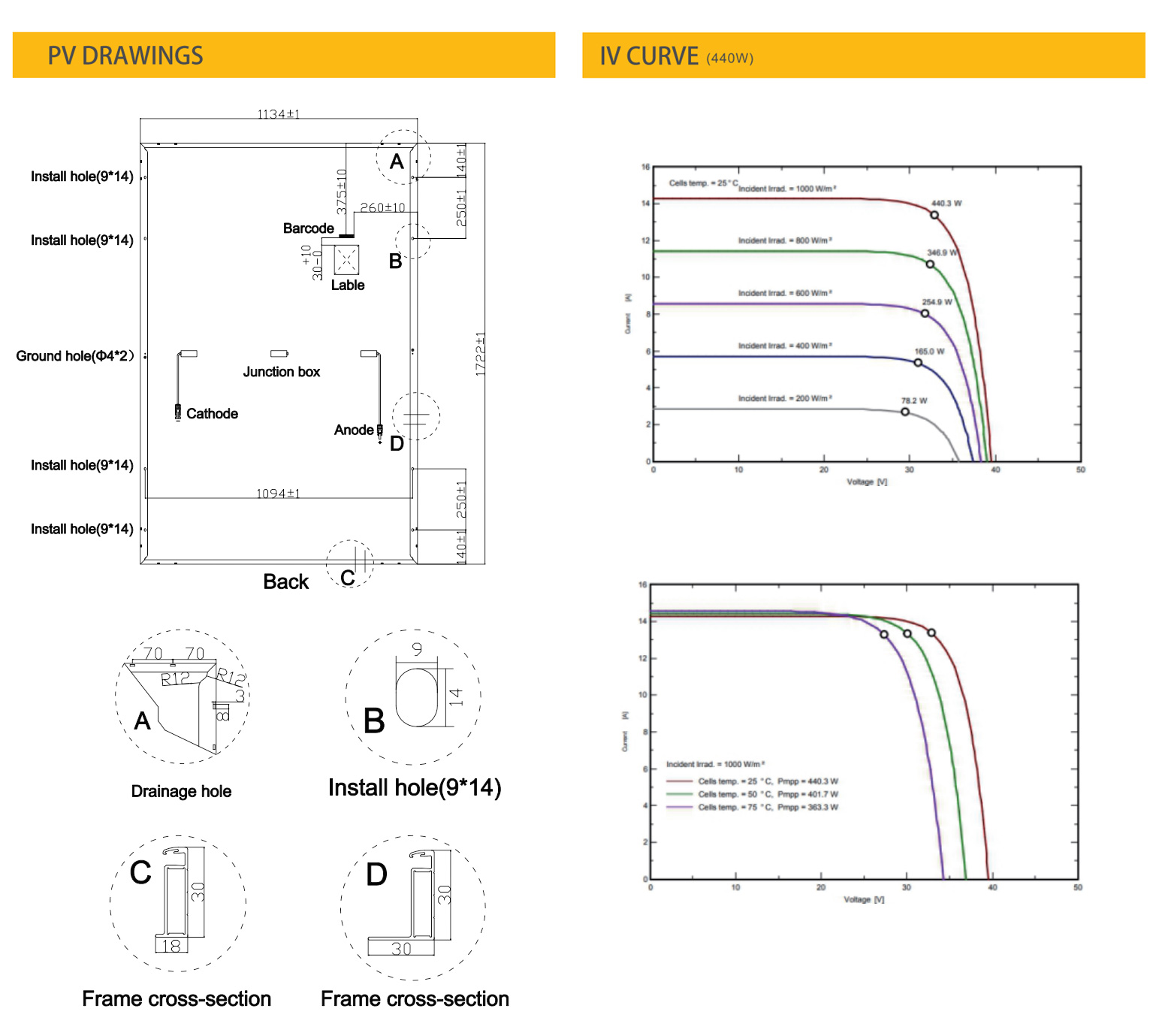

Dimensions | 1722*1134*30mm | |||||
Weight | 20.80kg | |||||
Front Glass | 3.2mm high transmission,low iron,tempered glass | |||||
Frame | Anodized Aluminium Alloy | |||||
Junction box | IP683diodes | |||||
Output cables | 4mm2 cable 35cm(Including MC4 connector) | |||||
MaxWind Load/Snow Load | 2400Pa/5400Pa | |||||
PACKING WAY | ||||||
20FT container | 6 Packages/222pcs | |||||
40HQ container | 26 Packages/962pcs |
