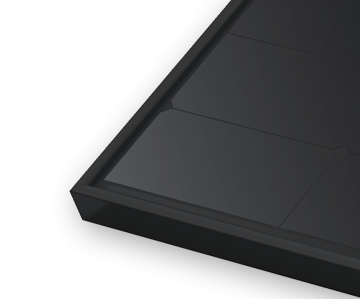

AU-108MHB
Solar Module
Lower power loss
Lower temperature coefficient
Higher double-sided revenue
Better performance in lower
light environment
Lower shipping cost on per watt
Lower levelized cost on energy
Model type | AU410-27V-MHB | AU415-27V-MHB | AU420-27V-MHB | AU425-27V-MHB | AU430-27V-MHB | AU435-27V-MHB |
ELECTRICAL DATA(STC) | ||||||
Peak Power(Pmax) | 410.00 | 415.00 | 420.00 | 425.00 | 430.00 | 435.00 |
Maximum Power Voltage (Vmp) | 32.36 | 32.56 | 32.76 | 32.96 | 33.16 | 33.36 |
Maximum Power Current (Imp) | 12.67 | 12.75 | 12.83 | 12.90 | 12.97 | 13.03 |
Open Circuit Voltage (Voc) | 38.63±3% | 38.83±3% | 39.03±3% | 39.23±3% | 39.43±3% | 39.63±3% |
Short Circuit Current (Isc) | 13.70±3% | 13.78±3% | 13.85±3% | 13.93±3% | 14.00±3% | 14.07±3% |
Module Efficiency (%) | 21.00 | 21.26 | 21.51 | 21.77 | 22.03 | 22.28 |
ELECTRICAL DATA(NOCT) | ||||||
Peak Power(Pmax) | 306.00 | 310.00 | 314.00 | 318.00 | 321.00 | 325.00 |
Maximum Power Voltage(Vmp) | 29.53 | 29.71 | 29.89 | 30.08 | 30.26 | 30.44 |
Maximum Power Current(Imp) | 10.37 | 10.44 | 10.50 | 10.56 | 10.78 | 10.68 |
Open Circuit Voltage(Voc) | 36.27±3% | 36.46±3% | 36.65±3% | 36.83±3% | 37.02±3% | 37.20±3% |
Short Circuit Current(Isc) | 11.07±3% | 11.13±3% | 11.19±3% | 11.25±3% | 11.31±3% | 11.37±3% |
TEMPERATURE MAXIMUM RATING | ||||||
Maximum System Voltage(V) | 1500V | |||||
Maximum Series Fuse Rating(A) | 25A | |||||
Power Tolerance | 0~+3W | |||||
Pmax Temperature Coefficients(W/℃) | -0.290%/℃ | |||||
Voc Temperature Coefficients(V/℃) | -0.230%/°℃ | |||||
Isc Temperature Coefficients(A/℃) | +0.050%/℃ | |||||
NOCT Nominal Operating Cell Temperature(℃) | 45±2℃ | |||||
Operating and Storage Temperature(℃) | -40~+85℃ | |||||
MECHANICAL CHARACTERISTICS | ||||||
Cell Type | 182*91 HPBC Mono | |||||
No.of Cells | 108(12*9) | |||||
Dimensions | 1722*1134*30mm | |||||
Weight | 20.80kg | |||||
Front Glass | 3.2mm high transmission,low iron,tempered glass | |||||
Frame | Anodized Aluminium Alloy | |||||
Junction box | IP683diodes | |||||
Output cables | 4mm2 cable 35cm(Including MC4 connector) | |||||
MaxWind Load/Snow Load | 2400Pa/5400Pa | |||||
PACKING WAY | ||||||
20FT container | 6 Packages/222pcs | |||||
40HQ container | 26 Packages/962pcs |
