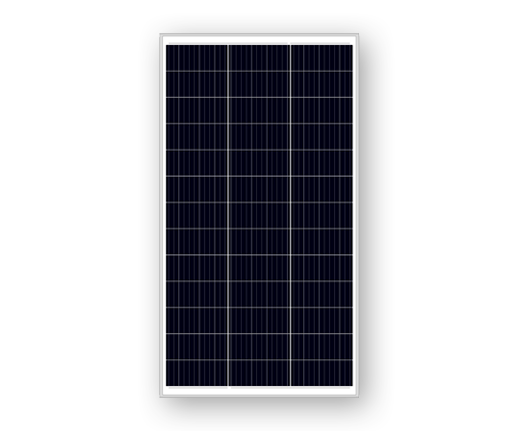

Solar Module
Guarantee
Warranty
Outstanding mechanical load resistance: 2400 Pa wind load, 5400 Pa snow load
Great durability against extreme conditions: Passed salt mist corrosion test, ammonia corrosion test, dust&sand test, fire test, all certified by TUV
Double electroluminescence ( EL ) tests: Carefully inspected before and after lamination to guarantee fault-free modules
Anti-PID (Potential Induced Degradation): Passed anti-PID test under 85% damp heat, 85% relative humidity for 96 hours
| Model Type | AU180W-18M | AU190W-18M | AU200W-18M |
| ELECTRICAL PERFORMANCE | |||
| Dimensions (L / W / H) | 1485*668*30 | 1485*668*30 | 1485*668*30 |
| STC | STC | STC | |
| Peak Power at STC (Pmax) | 180 | 190 | 200 |
| Maximum Power Voltage (Vmp) | 21.79 | 21.86 | 22.45 |
| Maximum Power Current (Imp) | 8.27 | 8.70 | 8.91 |
| Open Circuit Voltage (Voc) | 24.37 | 25.62 | 26.01 |
| Short Circuit Current (Isc) | 8.72 | 9.19 | 9.41 |
| Module Efficiency(%) | 18.99 | 18.87 | 20.80 |
| THERMAL CHARACTERISTICS & OPERATING CONDITIONS | |||
| Maximum System Voltage(V) | 1000V | ||
| Maximum Series Fuse Rating(A) | 10 | ||
| Power Tolerance | 0～+3﹪ | ||
| Pmax Temperature Coefficients(W/℃) | -0.350﹪ | ||
| Voc Temperature Coefficients(V/℃) | -0.270﹪ | ||
| Isc Temperature Coefficients(A/℃) | +0.048﹪ | ||
| NOCT Nominal Operating Cell Temperature(℃) | 45±2 | ||
| Operating and Storage Temperature(℃) | -40°C～+85°C | ||
| CONSTRUCTION MATERIALS | |||
| Front Cover (Material / Thickness) | low-iron tempered glass / 3.2mm | ||
| Cell (Quantity/Type/Dimensions) | 166*55.33 Mono | ||
| No. of Cells | 39(3*13) | ||
| Frame (Material) | Anodized Aluminium Alloy | ||
| Junction Box (Protection Degree) | IP65/IP67 | ||
| Cable (Length/Cross-Sectional Area) | 2.5mm² cable 50cm+mc4 | ||
| PACKAGING SPECIFICATIONS | |||
| 20FT container | |||
| 7Packages/672PCS | |||
| 40HQ container | |||
| 14Packages/1560PCS | |||
 |
|||
