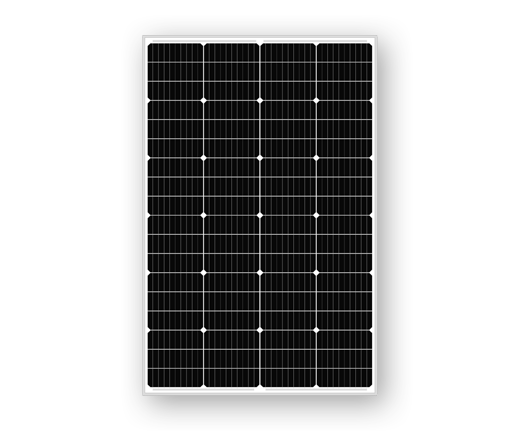

166M Splt Cell 140W-150W
Solar Module
Solar Module
Guarantee
Warranty
Outstanding mechanical load resistance: 2400 Pa wind load, 5400 Pa snow load
Great durability against extreme conditions: Passed salt mist corrosion test, ammonia corrosion test, dust&sand test, fire test, all certified by TUV
Double electroluminescence ( EL ) tests: Carefully inspected before and after lamination to guarantee fault-free modules
Anti-PID (Potential Induced Degradation): Passed anti-PID test under 85% damp heat, 85% relative humidity for 96 hours
| Model Type | AU140W-18M | AU150W-18M |
| ELECTRICAL PERFORMANCE | ||

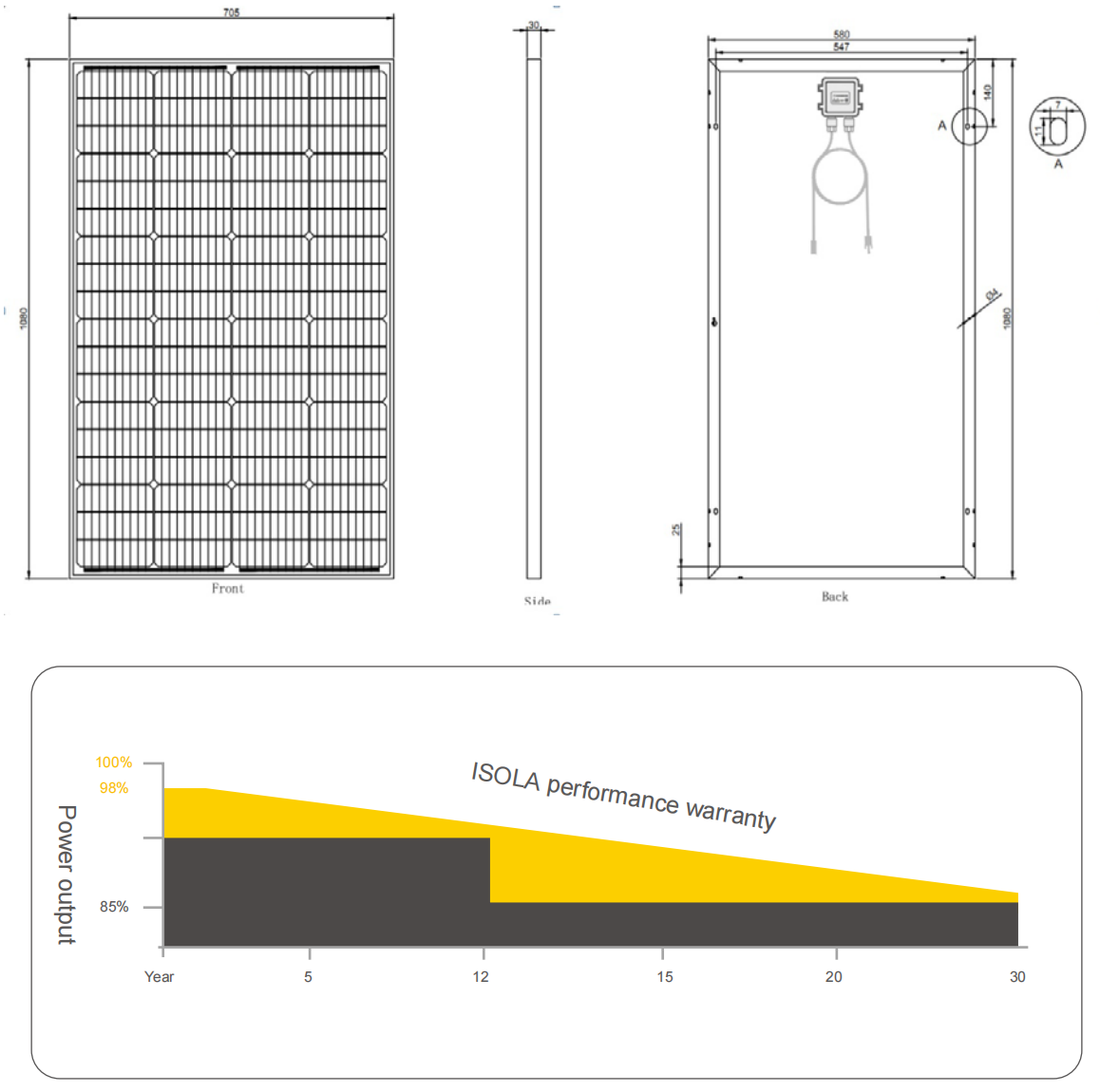

| Dimensions (L / W / H) | 1080*705*30 | 1080*705*30 |
| STC | STC | |
| Peak Power at STC (Pmax) | 140 | 150 |
| Maximum Power Voltage (Vmp) | 19.85 | 20.55 |
| Maximum Power Current (Imp) | 7.06 | 7.30 |
| Open Circuit Voltage (Voc) | 23.44 | 23.82 |
| Short Circuit Current (Isc) | 7.46 | 7.69 |
| Module Efficiency(%) | 18.39 | 19.70 |
| THERMAL CHARACTERISTICS & OPERATING CONDITIONS | ||
| Maximum System Voltage(V) | 1000V | |
| Maximum Series Fuse Rating(A) | 15 | |
| Power Tolerance | 0～+3﹪ | |
| Pmax Temperature Coefficients(W/℃) | -0.350﹪ | |
| Voc Temperature Coefficients(V/℃) | -0.270﹪ | |
| Isc Temperature Coefficients(A/℃) | +0.048﹪ | |
| NOCT Nominal Operating Cell Temperature(℃) | 45±2 | |
| Operating and Storage Temperature(℃) | -40°C～+85°C | |
| CONSTRUCTION MATERIALS | ||
| Front Cover (Material / Thickness) | low-iron tempered glass / 3.2mm | |
| Cell (Quantity/Type/Dimensions) | 166*55.33 Mono | |
| No. of Cells | 72(4*18) | |
| Frame (Material) | Anodized Aluminium Alloy | |
| Junction Box (Protection Degree) | IP65/IP67 | |
| Cable (Length/Cross-Sectional Area) | 2.5mm² cable 50cm+mc4 | |
| PACKAGING SPECIFICATIONS | ||
| 20FT container | ||
| 8Packages/960PCS | ||
| 40HQ container | ||
| 16Packages/2176PCS | ||
 |
||
