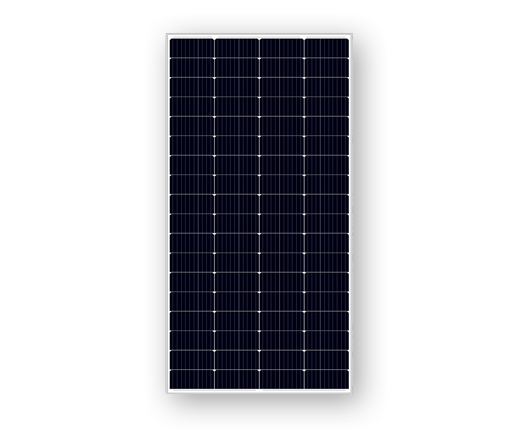

Solar Module
Guarantee
Warranty
Outstanding mechanical load resistance: 2400 Pa wind load, 5400 Pa snow load
Great durability against extreme conditions: Passed salt mist corrosion test, ammonia corrosion test, dust&sand test, fire test, all certified by TUV
Double electroluminescence ( EL ) tests: Carefully inspected before and after lamination to guarantee fault-free modules
Anti-PID (Potential Induced Degradation): Passed anti-PID test under 85% damp heat, 85% relative humidity for 96 hours
| Model Type | AU250W-36M | AU260W-36M | AU270W-36M | AU280W-36M |
| ELECTRICAL PERFORMANCE | ||||
| Dimensions (L / W / H) | 1725*770*35 | 1725*770*35 | 1725*770*35 | 1725*770*35 |
| STC | STC | STC | STC | |
| Peak Power at STC (Pmax) | 250 | 260 | 270 | 280 |
| Maximum Power Voltage (Vmp) | 40.24 | 40.87 | 41.44 | 42.27 |
| Maximum Power Current (Imp) | 6.22 | 6.22 | 6.52 | 6.63 |
| Open Circuit Voltage (Voc) | 46.96 | 47.52 | 47.80 | 48.07 |
| Short Circuit Current (Isc) | 6.57 | 6.72 | 6.86 | 6.94 |
| Module Efficiency(%) | 18.82 | 19.57 | 20.32 | 21.08 |
| THERMAL CHARACTERISTICS & OPERATING CONDITIONS | ||||
| Maximum System Voltage(V) | 1000V | |||
| Maximum Series Fuse Rating(A) | 15 | |||
| Power Tolerance | 0～+3﹪ | |||
| Pmax Temperature Coefficients(W/℃) | -0.350﹪ | |||
| Voc Temperature Coefficients(V/℃) | -0.270﹪ | |||
| Isc Temperature Coefficients(A/℃) | +0.048﹪ | |||
| NOCT Nominal Operating Cell Temperature(℃) | 45±2 | |||
| Operating and Storage Temperature(℃) | -40°C～+85°C | |||
| CONSTRUCTION MATERIALS | ||||
| Front Cover (Material / Thickness) | low-iron tempered glass / 3.2mm | |||
| Cell (Quantity/Type/Dimensions) | 182*91 Mono | |||
| No. of Cells | 72(4*18) | |||
| Frame (Material) | Anodized Aluminium Alloy | |||
| Junction Box (Protection Degree) | IP65/IP67 | |||
| Cable (Length/Cross-Sectional Area) | 4mm² cable 90cm+mc4 | |||
| PACKAGING SPECIFICATIONS | ||||
| 20FT container | ||||
| 6Packages/408PCS | ||||
| 40HQ container | ||||
| 13Packages/1092PCS | ||||
 |
||||
