AU430-450W PERC MONO

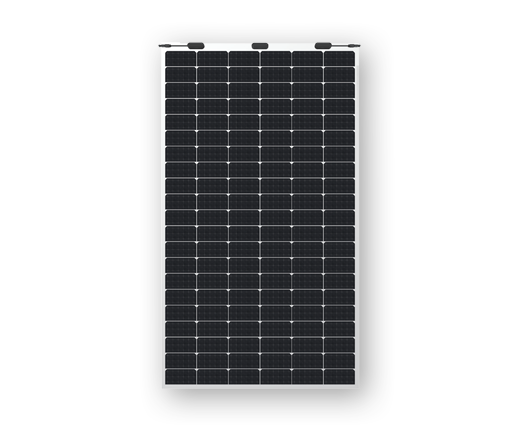

430-450W Flexible Solar Panel
430-450W Flexible Solar Panel
Guarantee

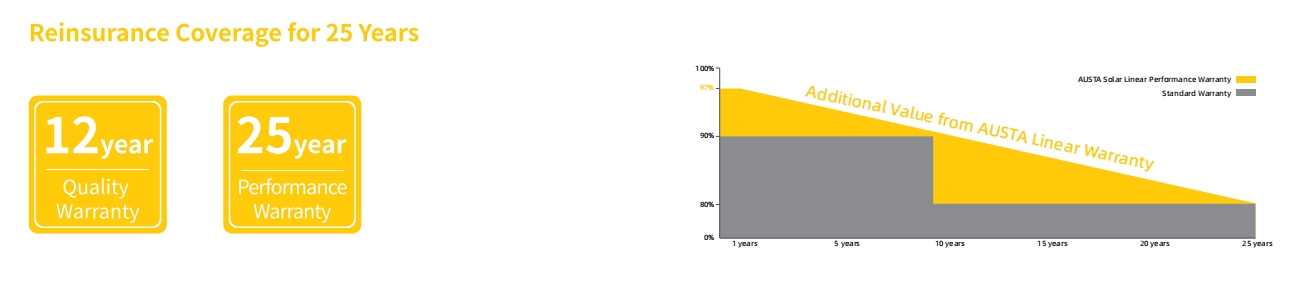

Warranty
Outstanding mechanical load resistance: 2400 Pa wind load, 5400 Pa snow load
Great durability against extreme conditions: Passed salt mist corrosion test, ammonia corrosion test, dust&sand test, fire test, all certified by TUV
Double electroluminescence ( EL ) tests: Carefully inspected before and after lamination to guarantee fault-free modules
Anti-PID (Potential Induced Degradation): Passed anti-PID test under 85% damp heat, 85% relative humidity for 96 hours
| Electrical Characteristics at Standard Test Conditions(STC) | |||
| Model Type | AU430W-120MF | AU440W-120MF | AU450W-120MF |
| Peak Power(Pmax) | 430.00 | 440.00 | 450.00 |
| Max. Power Voltage(Vmp) | 34.80 | 35.10 | 35.40 |
| Max. Power Current(Imp) | 12.36 | 12.54 | 12.72 |
| Open Circuit Voltage(Voc) | 41.43 | 41.79 | 42.15 |
| Short Circuit Voltage(Isc) | 13.29 | 13.48 | 13.67 |
| Module Efficiency(%) | 19.57 | 20.02 | 20.48 |
| Temperature & Max. Rating | |||
| Max. System Voltage(V) | 1500 | ||
| Max. Series Fuse Rating(A) | 25 | ||
| Power Tolerance | 0~+3% | ||
| Pmax Temperature Coefficients(W/℃) | -0.350% | ||
| Voc Temperature Coefficients(V/℃) | -0.270% | ||
| Isc Temperature Coefficient(A/℃) | +0.048% | ||
| NOCT Nominal Operating Cell Temperature(℃) | 45±2 | ||
| Operating and Srorage Temperature(℃) | -40°C～+85°C | ||
| Mechanical Characterisrtics | |||
| Cell Type | 182×91Mono | ||
| No. of Cells | 120（6×20） | ||
| Dimensions | 1936*1135*2.5mm | ||
| Weight | 7.9kg | ||
| Junction Box | IP67/IP68 | ||
| Output Cables | 4mm² cable 30cm+mc4 | ||
| Max. Wind Load/Snow Load | 2400Pa/5400Pa | ||
| Packing Way | |||
| 20FT | |||
| 40HQ | |||
| Module Size | |||
 |
|||
