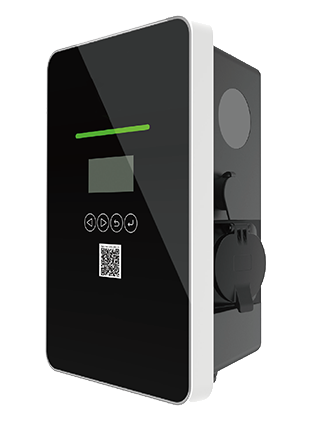

Three Phase
Temper glass front panel
Robust enclosure
Easy installation
Vinyl branding options available
Type 2 cable/Type 2 socket
Wall-mount/Floor stand installation
App operation/RFID authentication/Plug & Play
Connectivity: Wi-Fi/Ethernet/Bluetooth(Standard) 4G(Optional)
Smart mobile App control
2.7” B&W information screen
OCPP 1.6 Json(OCPP 2.0 upgradeable)
30mA Type A+6 mA DC RCD
Type A RCBO
MID Certified Energy Meter
| Datasheet | Model | AC022K-AE-44 |
| Electrical Specification |
Power Supply | 3P+N+PE |
| Rated Voltoge | 400V AC | |
| Rated Current | 16A | |
| Frequency | 50/60Hz | |
| Rated Power | 22kW | |
| Basic Attributes | Charge Connector | Type 2 Cable /Type 2 Socket |
| Cable Length | 4m/7m | |
| Enclosure | Galvanized Steel+Temper Glass | |
| Installation | Wall-mount/Pole-mount(Optional) | |
| Interactive Interface | LED Indicator | Green/Yellow/Red |
| LCD Display | 2.7" Black & White LCD |
|
| RFID Reader | Mifare ISO/IEC 14443 A | |
| Start Mode | Plug&Play/RFID Card/App | |
| Communication | Wi-Fi & Ethernet & Bluetooth | Standard |
| 4G | Optional | |
| OCPP | OCPP1.6 Json(OCPP 2.0 Upgradable) | |
| Safety | RCD | 30mA Type A+6mA DC |
| RCBO | Type A | |
| Energy Meter | MID Certified | |
| Ingress Protection | IP65 | |
| Impact Protection | IK08 | |
| Electrical Protection | Over current protection, Residual current protection Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over temperature protection |
|
| Certification | TUV Mark /CE/CB | |
| Certification Standard | EN IEC 61851-1:2019 IEC61851-1:2017 IEC61851-21-2:2021 | |
| Warranty | 2 Years | |
| Working Environment | Operation Temperature | -30℃ -+50℃ |
| Work Humidity | 5%-95% | |
| Work Altitude | <2000m | |
| Package | Product Dimension | 452*295*148mm(H*W*D) |
| Package Dimension | 570*390*220mm(L*W*H) | |
| Net Weight | 10.0kg | |
| Gross Weight | 12.5kg | |
| External Package | Carton |
